Custom Ductile Iron Castings
High-strength, fatigue-resistant ductile (nodular) iron castings engineered for demanding industrial environments. Cost-effective alternatives to steel, delivered Ready-To-Assemble.
Request a Free QuoteThe Perfect Balance of Strength and Machinability.
Also known as nodular iron, custom ductile iron castings bridge the gap between traditional gray iron and cast steel. Thanks to its unique spherical graphite structure, ductile iron offers exceptional tensile strength, remarkable ductility, and superior impact resistance—without sacrificing castability.

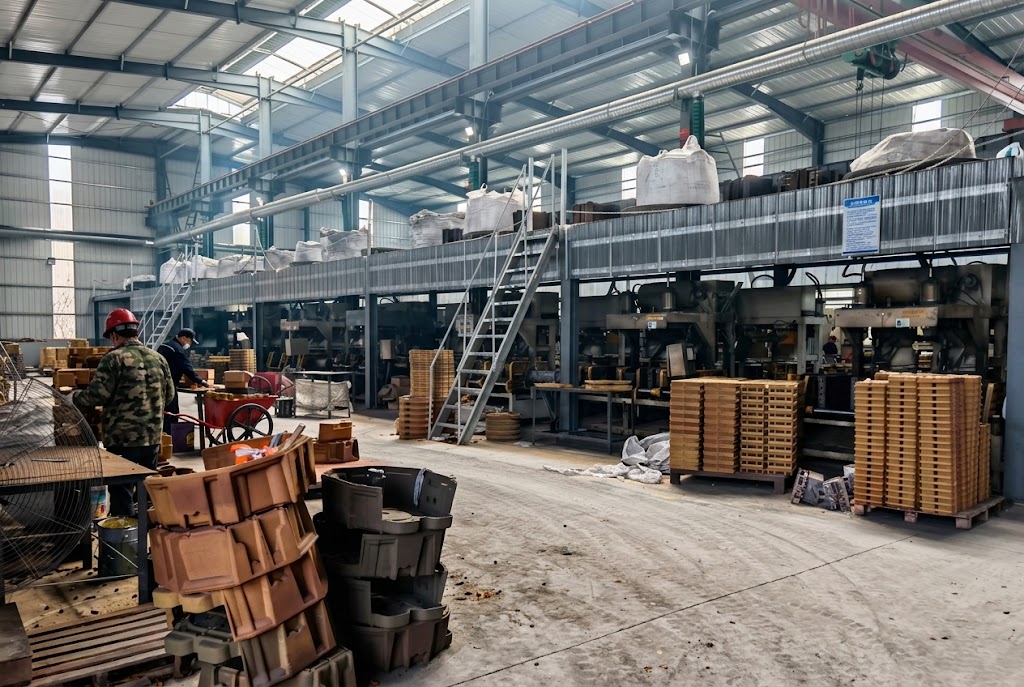

At Kurt Foundry, our advanced resin sand casting process allows us to produce medium to large-scale ductile iron components. It is the ideal material choice for heavy-duty components where weight reduction, excellent machinability, and lower production costs are required compared to carbon steel.
View Material GradesCommon Ductile Iron Casting Grades
Our in-house metallurgy lab ensures precise nodularity and chemical composition. Below are the most frequent cast ductile iron grades we pour.
| Standard / Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Common Applications |
|---|---|---|---|---|
| ASTM A536 60-40-18 | ≥ 414 | ≥ 276 | ≥ 18 | Pressure containing parts, valve bodies, high-shock components. |
| ASTM A536 65-45-12 | ≥ 448 | ≥ 310 | ≥ 12 | Machinery frames, heavy-duty gearboxes, automotive suspension. |
| ASTM A536 80-55-06 | ≥ 552 | ≥ 379 | ≥ 6 | Crankshafts, gears, heavy machinery structural brackets. |
| ASTM A536 100-70-03 | ≥ 689 | ≥ 483 | ≥ 3 | High-strength applications requiring excellent wear resistance. |
| DIN EN 1563 EN-GJS-500-7 | ≥ 500 | ≥ 320 | ≥ 7 | European standard equivalent for general engineering components. |
Our Ductile Iron Sand Casting Process
Producing high-quality ductile iron requires exact control over the nodularization process to guarantee structural integrity.
1. Casting Simulation
We apply advanced DFM and 3D simulation to engineer precise gating systems, ensuring smooth flow and preventing shrinkage defects.
2. Resin Sand Molding
Using high-grade resin sand, we produce exceptionally rigid molds that maintain tight dimensional tolerances for heavy iron castings.
3. Magnesium Treatment
The crucial nodularization step: controlled magnesium alloy is introduced to the molten iron to transform graphite flakes into solid spheres.
4. Spectrometric Analysis
Before every pour, thermal analysis and spectrometry confirm the exact carbon equivalent and nodularity rate to meet ASTM specifications.
5. CNC Machining & QC
Castings are shot-blasted, fully CNC machined in-house, and pass strict quality checks including UT and dimensional inspections.
Ductile Iron Casting Applications
We supply precision-machined ductile iron castings to heavy equipment manufacturers worldwide.

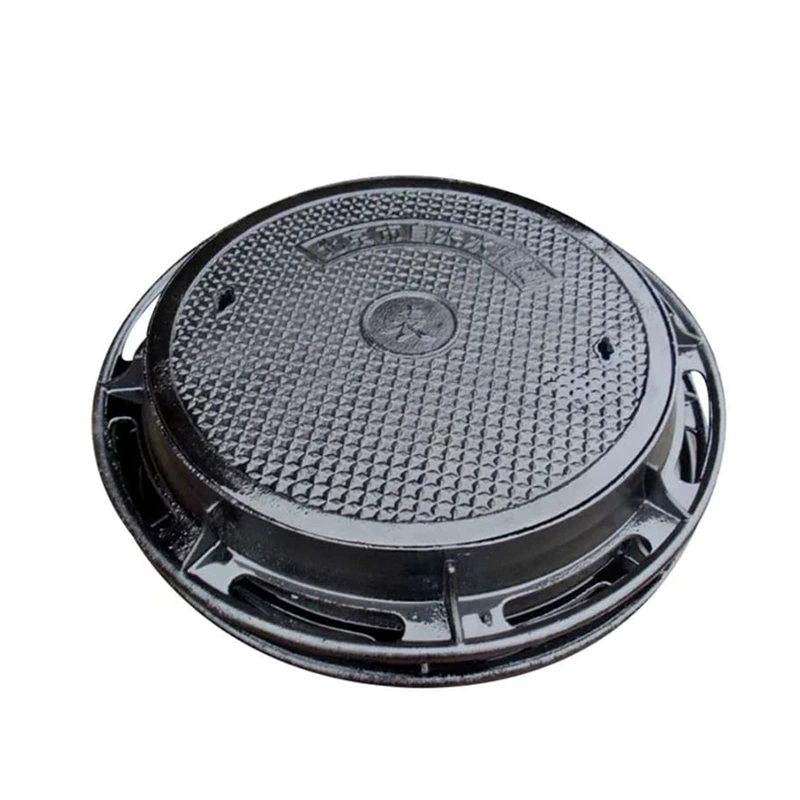

Heavy-Duty Manhole Covers
Ductile iron is the standard for municipal applications. It provides exceptional load-bearing capacity and impact resistance, allowing it to withstand heavy traffic without fracturing.
Heavy-Duty Brake Discs
Engineered for high-stress braking systems, our ductile iron brake discs offer excellent thermal conductivity and wear resistance, ensuring safety in commercial vehicles and heavy machinery.

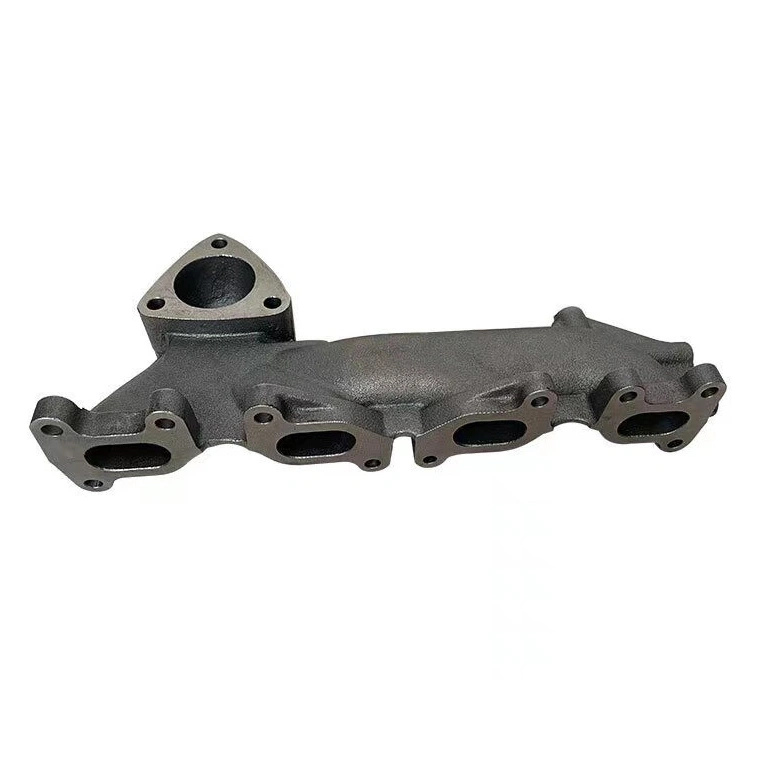

Exhaust Manifolds
Cast from specialized high-temperature ductile iron grades, these complex manifolds resist thermal fatigue and oxidation, providing reliable performance in demanding engine environments.
Why Partner with Us for Ductile Iron?
By keeping the entire production process—from tooling design and pouring to precision CNC machining—under one roof, we eliminate supply chain risks and deliver completely finished components.
- Direct Factory Pricing – Cost-Effective Alternatives to Steel
- Consistent Nodularity Control via In-House Metallurgy
- Comprehensive Material Test Reports (MTRs) Provided
- Seamless DDP/FOB Logistics to North America
Ductile Iron Casting FAQs
The primary difference lies in the graphite structure. Gray iron has graphite flakes, making it brittle but good at dampening vibration. Ductile iron is treated with magnesium to form spherical (nodular) graphite, which gives it much higher tensile strength, impact resistance, and ductility (the ability to bend without breaking).
In many cases, yes. Ductile iron offers a yield strength comparable to many cast carbon steels but is easier to cast and machine, resulting in a lower overall part cost. It is an excellent upgrade for parts that are too stressed for gray iron but don’t strictly require the weldability of carbon steel.
Our sand foundry is equipped to handle custom ductile iron components ranging from 50 lbs up to 5,000 lbs (2.5 tons) per single piece, making us ideal for heavy machinery components.
Ductile iron has excellent machinability, generally superior to carbon steel of equivalent hardness. The graphite nodules act as a natural lubricant during the cutting process, which extends tool life and allows for faster machining speeds.
We maintain rigorous quality control. We perform pre-pour spectrometric analysis, thermal analysis to check nodularity, and post-pour mechanical testing (tensile/yield/elongation). We also offer ultrasonic testing (UT) to ensure internal soundness.
Yes, Kurt Foundry provides fully integrated manufacturing. We cast the ductile iron parts and utilize our in-house 5-axis CNC machining centers to drill, mill, bore, and turn the castings so they are ready for immediate assembly upon delivery.
Ready to Quote Your Iron Casting Project?
Send us your 2D/3D CAD drawings. Our foundry engineers will provide a comprehensive DFM review and a competitive B2B quote within 48 hours.
