A $10,000 savings on tooling sounds like a clear win — until a 20-minute CNC cycle on every unit burns through that advantage before the first production run ships. I’ve watched procurement teams celebrate the lower quote only to absorb 40% more in rework and secondary machining downstream. The investment casting vs sand casting decision isn’t the binary quality-vs-cost trade-off most comparison guides present. For the majority of mid-volume industrial components, the real question is simpler than you think: how much finishing does your part actually need?
Where Each Process Wins and Where It Doesn’t

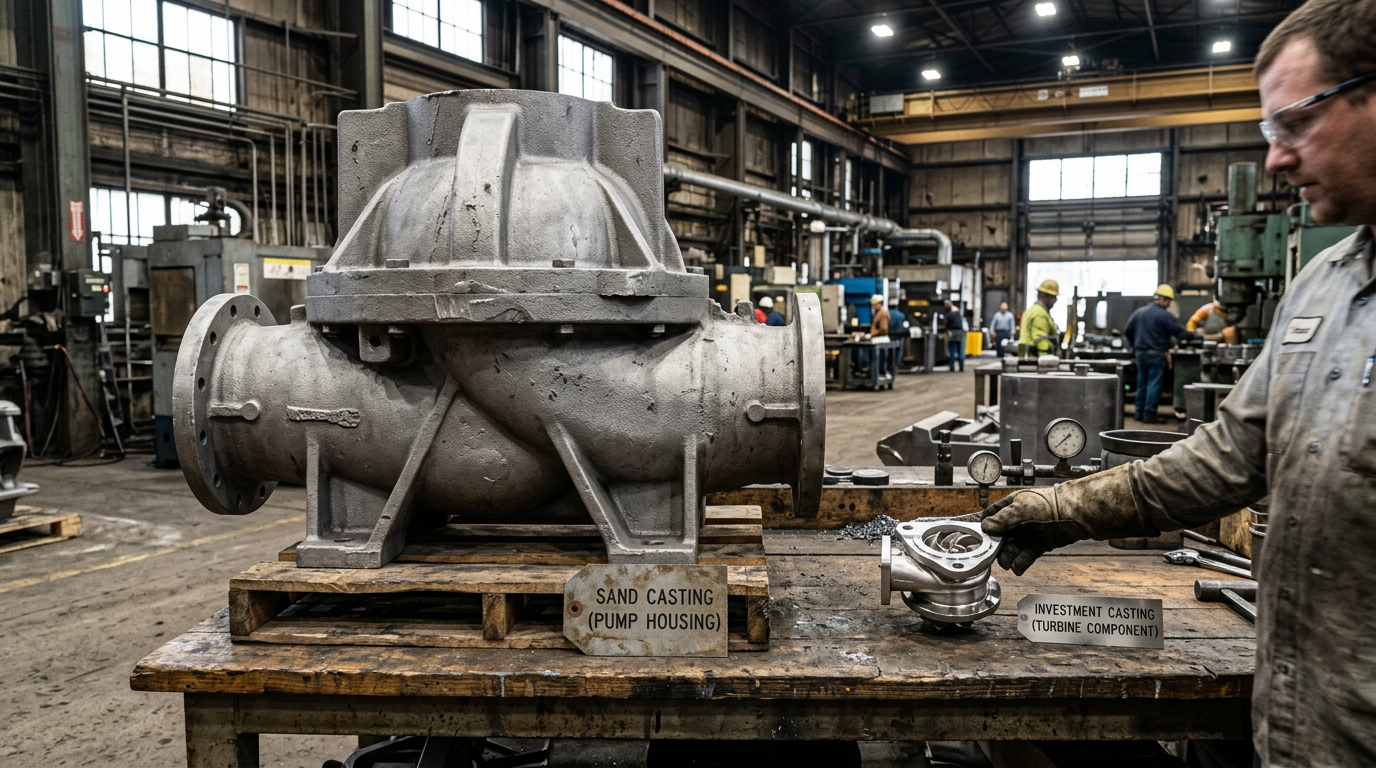

Investment casting produces near-net-shape parts with walls as thin as 1/8 inch and complex internal geometries that would require extensive coring in sand molds. That precision comes with a weight ceiling — most commercial investment casting shops top out around 100 to 150 lbs. Above that, you’re looking at a very short list of specialty foundries and a much longer lead time.
Sand casting has no practical upper weight limit. Parts from a few ounces to 6,000+ lbs run through the same fundamental process. Draft angles are more generous, minimum wall thickness sits at 3 to 5 mm, and pattern modifications cost a fraction of wax die changes. The trade-off is rougher as-cast surfaces and wider dimensional tolerances — though that gap narrows fast once you move beyond green sand.
For any component over roughly 100 lbs, the comparison is essentially over. Sand casting wins by default, and the remaining decision is which sand process and how much machining.
Tolerance and Surface Finish by the Numbers
At the 0 to 1 inch dimension range, investment casting holds +/-0.013 inch versus sand casting’s +/-0.071 inch — roughly a 5.5x difference. That ratio stays fairly consistent through larger dimensions: +/-0.015 versus +/-0.087 at 1 to 3 inches, and +/-0.020 versus +/-0.110 at 6 to 9 inches. In ISO terms, investment casting lands at CT 4-6 while sand casting falls at CT 10-13.

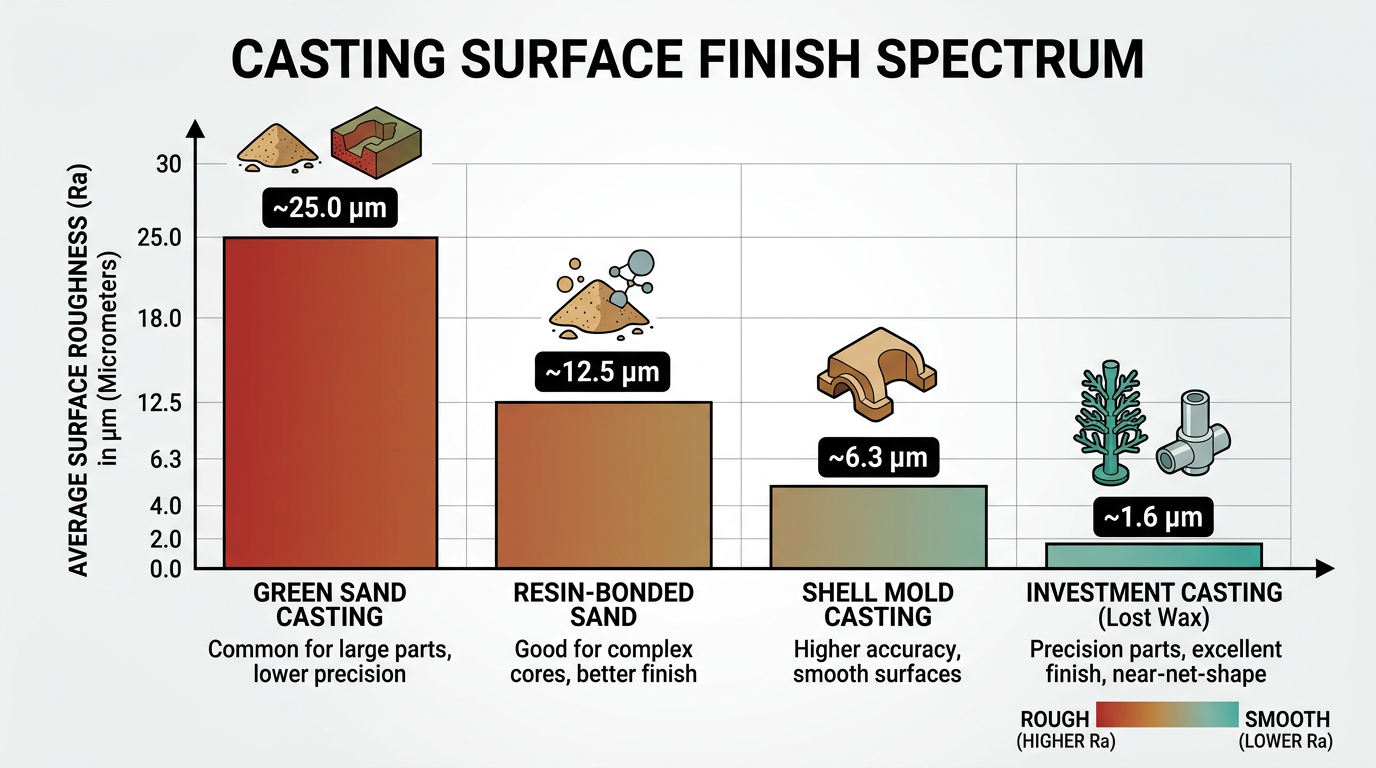

Surface finish tells a more nuanced story. Standard green sand casting produces a rough Ra 250-500 microinch (>25 um) finish. But sand casting isn’t one process — it’s a spectrum. Resin-bonded (no-bake) molds cut that to 6.3 um Ra. Shell molding pushes further to 1.6-3.2 um Ra, which approaches investment casting’s 0.8-2.0 um Ra range. Refractory coatings on sand molds alone improve finish by 48 to 64% before any metal cutting happens.
Most engineers compare green sand to investment casting and conclude the gap is enormous. Compare shell mold to investment casting, and the gap shrinks to less than 2x. That distinction changes the math on whether you need to pay for investment casting’s premium, or whether a better sand process gets you close enough.
Sand casting handles the full range of carbon steel and iron alloys with no restrictions, and ASTM grades like A216 WCB, A352 LCB, and 8620 run daily in sand foundries worldwide.

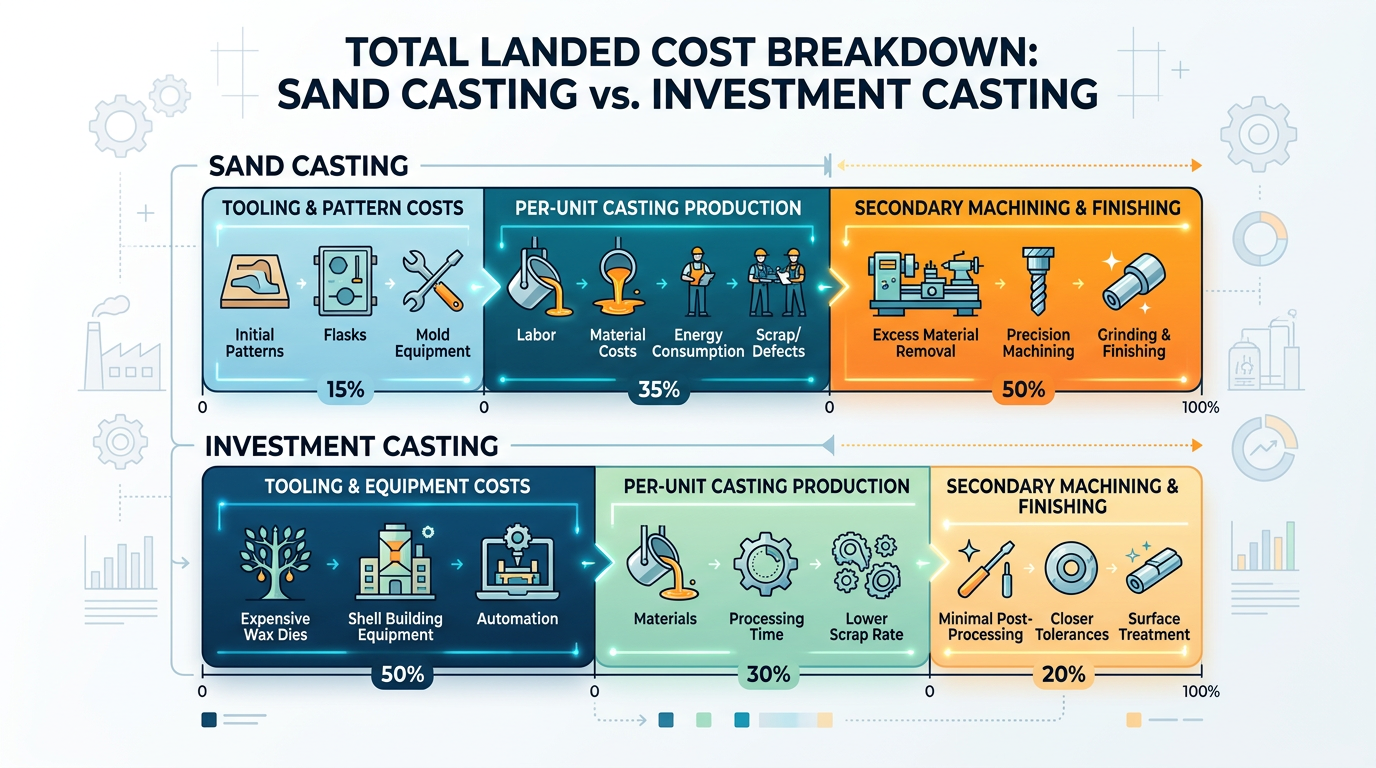

Total Cost Beyond Piece Price
Tooling is the first cost most buyers compare: sand casting patterns run roughly $2,000 versus $6,000 to $15,000 for investment casting wax dies. That 3x to 7.5x gap looks decisive on a purchase order. It isn’t.
The real comparison is total landed cost across your production volume. Sand casting’s lower tooling amortizes fast at any quantity — but if every unit needs 20+ minutes of CNC time to reach spec, those machining hours compound. I’ve seen projects where a team chose sand casting to save $10,000 on tooling and spent more than that in secondary machining during the first 200-unit run. The savings never materialized.
Investment casting’s near-net-shape advantage means less machining per unit. At volumes above roughly 500 units per year, the per-unit cost advantage from eliminated secondary operations can overtake sand casting’s tooling savings. Below 500, the tooling amortization usually keeps sand casting ahead — especially when only a few critical surfaces need tight tolerances.
When you factor in the total landed cost, the winning process depends on one variable: what percentage of your part’s surfaces actually need machined tolerances?

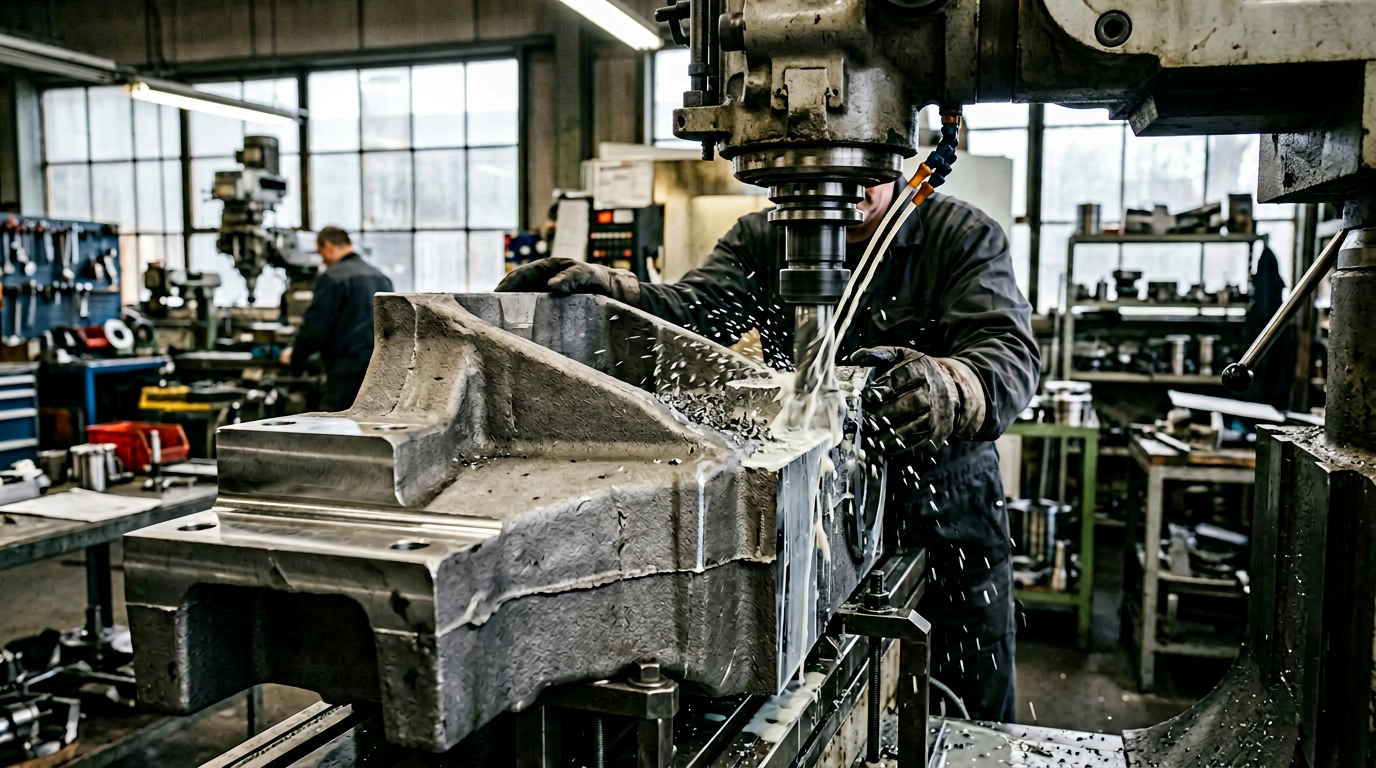

The Sand Casting + Machining Path
Most procurement teams never run this calculation: sand casting with targeted CNC machining on critical surfaces only.
Sand castings carry a 2 to 5 mm machining allowance on specified surfaces. A foundry with integrated CNC capability can cast a part with generous as-cast tolerances on non-critical faces while machining bearing seats, sealing surfaces, and mating interfaces to investment-casting-grade precision. You’re not machining the entire part — you’re machining the 15 to 30% of surfaces where tolerance drives function.
For components where only specific surfaces need tight tolerances — and that describes the majority of industrial castings I evaluate — this hybrid approach delivers 30 to 50% lower total cost than full investment casting. The savings come from lower tooling, lower per-unit casting cost, and selective rather than blanket machining.
A stainless steel casting with two machined bore surfaces and one flange face costs far less through sand casting + CNC than an equivalent investment casting finished to the same specs. The key condition: this math works when machining scope stays targeted. If every surface on your part needs Ra 125 or better, the CNC time accumulates and investment casting’s near-net-shape advantage reasserts itself.

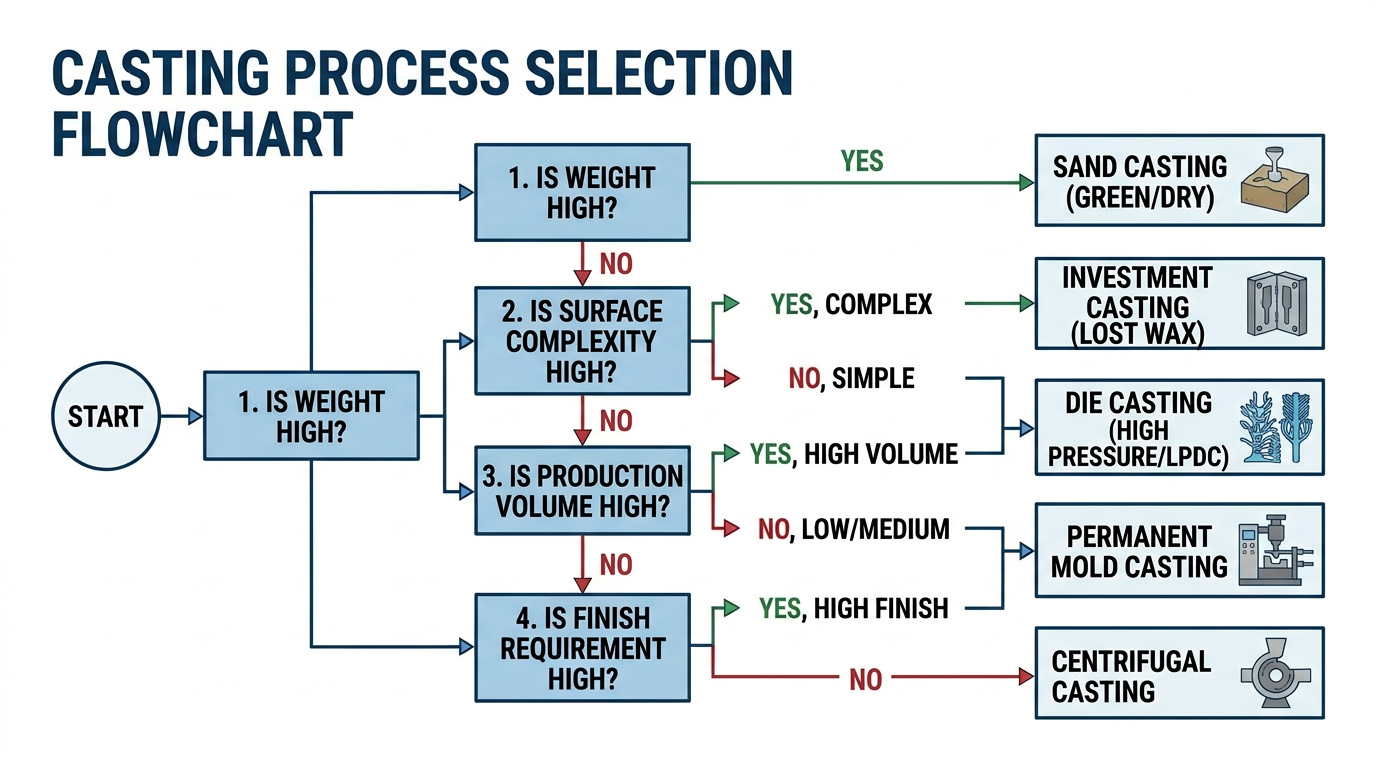

Four Questions to Choose Your Process
Before you RFQ, run your component through these four filters in order. Each one narrows or eliminates options.
1. What does the part weigh? Over 100 lbs eliminates investment casting for most commercial suppliers. Sand casting is your process — move to question 4.
2. What percentage of surfaces need machined tolerances? If every surface needs +/-0.015 inch or better, investment casting’s near-net-shape efficiency likely wins on total cost. If only 20 to 40% of surfaces are critical, sand casting + targeted CNC is your strongest cost play.
3. What’s your annual volume? Below 500 units, sand casting’s $2,000 tooling versus $6,000-$15,000 for investment casting creates a gap that’s hard to close with per-unit savings. Above 500, run the total cost calculation including secondary machining hours.
4. Does the surface actually need that finish? Sealing surfaces, bearing journals, and fatigue-critical zones need machined finishes. Structural faces, housings, and non-contact surfaces usually function perfectly at as-cast Ra 250. I see engineers specify Ra 125 on surfaces that will never contact another part — every unnecessary finish spec adds cost without adding function.
Define your quality requirements on paper before the first RFQ goes out. The most expensive casting decision is discovering your process choice was wrong after tooling is cut.
Making the Right Call
The investment casting vs sand casting decision collapses once you stop comparing as-cast properties and start comparing finished-part requirements. For the industrial components that cross my desk — valve bodies, pump housings, brackets, structural frames — sand casting with targeted machining on critical surfaces handles the majority of applications at lower total cost than investment casting.
Investment casting earns its premium on thin-wall, complex-geometry parts where every surface matters and volumes justify the tooling. For everything else, calculate your total landed cost with sand + CNC before assuming investment casting is the only path to precision. The fastest way to overspend on casting is to let the process decision default to tradition instead of math.
