A $50,000 die casting mold adds $50 to every part at 1,000 units — but only $0.50 at 100,000. That 100x cost swing exposes the flaw in the “die casting for high volume, sand casting for low volume” rule: it is dangerously incomplete. Volume matters, but it is not where the decision starts. Alloy selection eliminates die casting entirely for a massive portion of industrial components, and total landed cost — not piece price — determines which process actually saves money. Before you send an RFQ, you need a better framework than volume alone.
Alloy Constraints Come First
If your part requires carbon steel, ductile iron, gray iron, or stainless steel, die casting is not an option at any volume.
Die casting dies are made from tool steel. When ferrous metals — anything with a melting point above roughly 1,100 C — contact that die during repeated thermal cycling, they attack and corrode the die cavity. The die degrades within hundreds of shots instead of the 50,000 to 1,000,000-shot lifespan you need for the economics to work. This is not a cost limitation or a tooling limitation. It is a metallurgical impossibility.
Die casting works with aluminum, zinc, magnesium, and some copper-based alloys. That covers a specific set of applications well. But carbon steel, ductile iron, gray iron, stainless — the workhorses of heavy equipment, infrastructure, power generation, and industrial machinery — require sand casting, investment casting, or another expendable-mold process.
I have reviewed RFQ packages where an engineer specified die casting for a ductile iron bracket simply because the annual volume was 15,000 units. Three suppliers declined to quote. The fourth quoted investment casting at triple the expected price. The correct process was green sand casting from the start — and the team lost six weeks finding that out.
Part Size Is the Second Gate

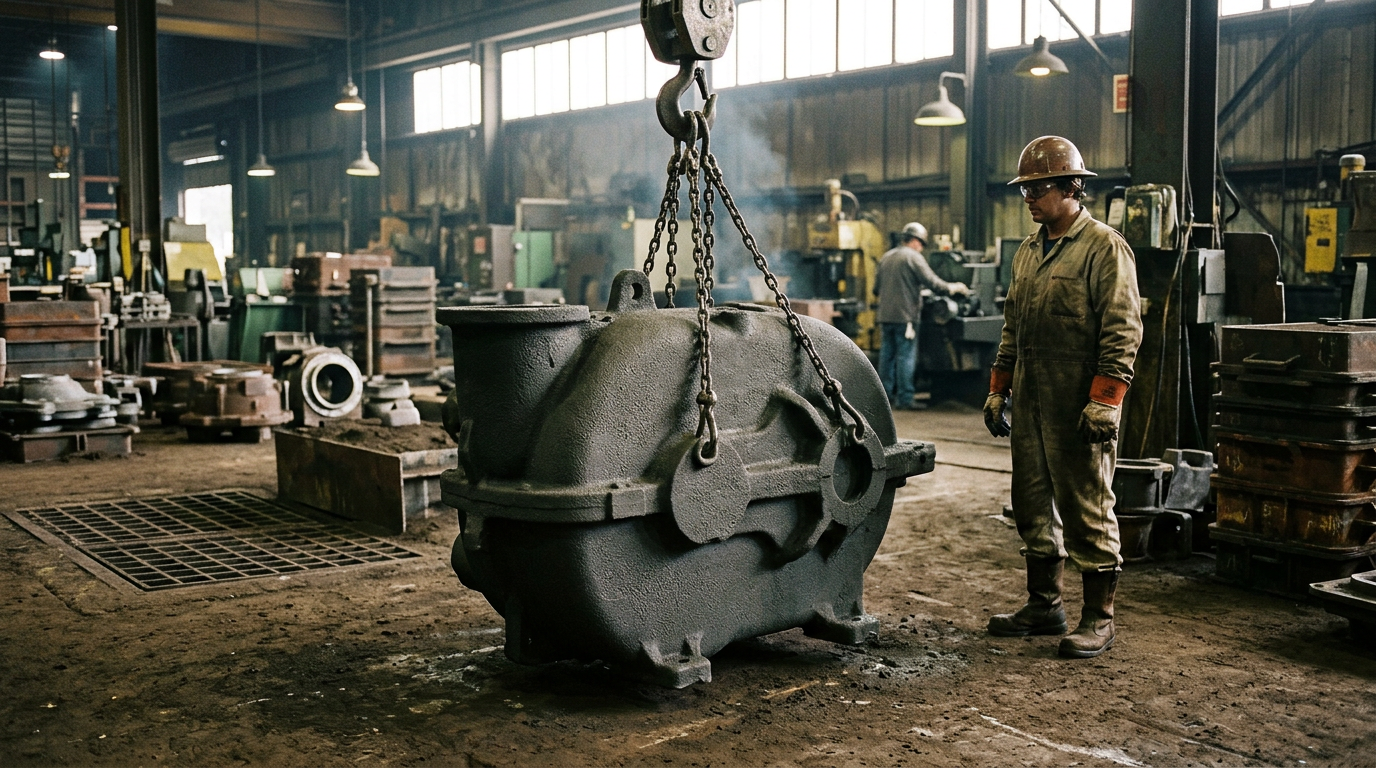

Sand casting has no practical weight limit. Castings over 5 tons are routine. Die casting hits a practical ceiling around 50 kg, with most production concentrated under 25 kg. If your component weighs more than 50 kg, you are in sand casting territory regardless of alloy.
Between alloy and weight, these two constraints alone pre-determine the answer for the majority of industrial component specifications — before volume enters the conversation.
Tolerance, Finish, and Design Limits
Die casting genuinely outperforms sand casting on dimensional precision and surface quality. No question. But the gap matters less than the numbers suggest.
| Parameter | Sand Casting | Die Casting |
|---|---|---|
| Tolerance | +/-0.5 to +/-2.0 mm | +/-0.1 to +/-0.5 mm |
| Surface finish (Ra) | 6.3-25 um | 1-2 um |
| Minimum wall thickness | 3 mm | 0.5 mm |
| Maximum wall thickness | No limit | 12 mm |
| Part weight range | No limit | Up to ~50 kg |

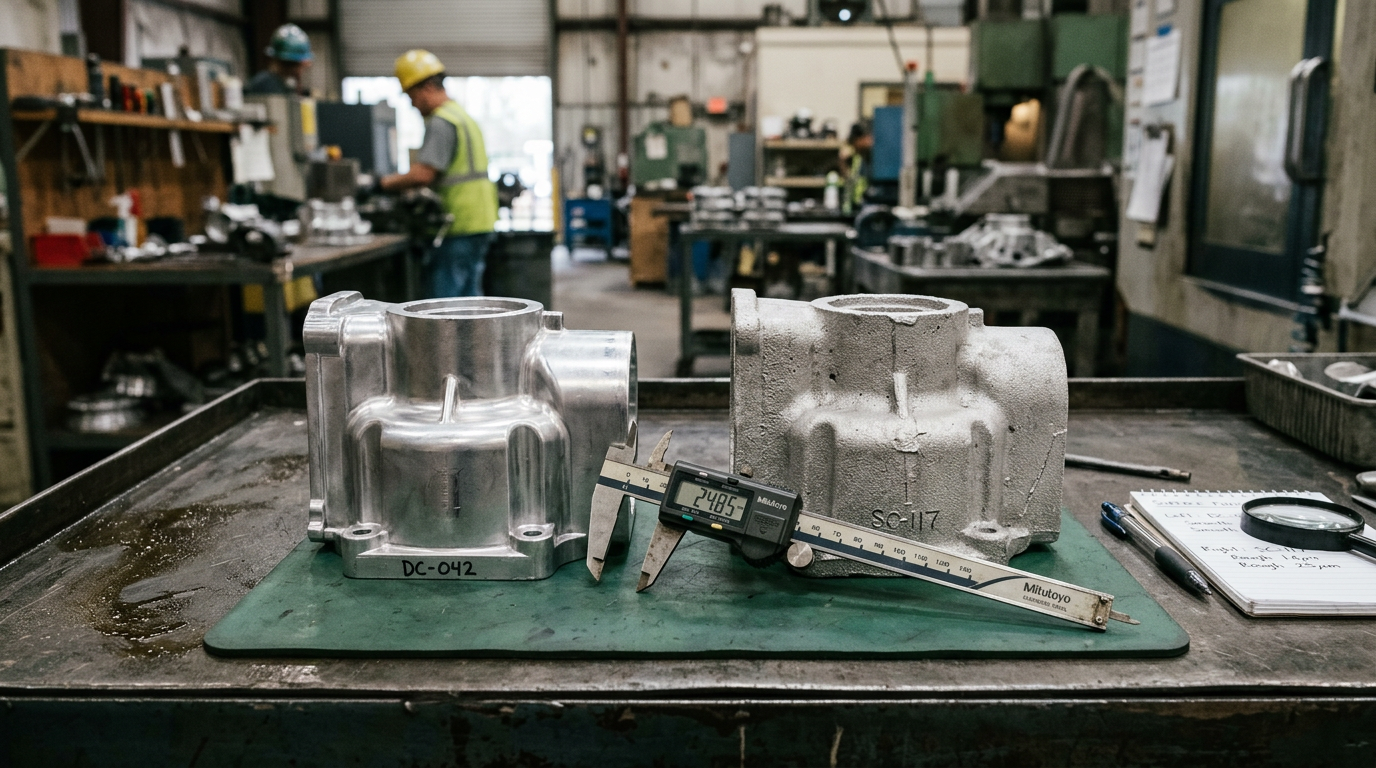

Die casting delivers tighter tolerances and smoother surfaces straight out of the mold. For cosmetic parts, thin-walled housings, or high-precision components in aluminum or zinc, that as-cast quality reduces or eliminates secondary machining.
Critical mating surfaces get machined regardless of casting process. If your ductile iron housing needs +/-0.025 mm on bearing bores, both sand castings and die castings go to the CNC mill. The as-cast surface finish on those bores is irrelevant. Sand casting’s “rough” surface finish only matters for non-machined or cosmetic surfaces.
Wall thickness constraints cut both ways. Die casting can produce thinner walls (0.5 mm vs 3 mm minimum), which is an advantage for lightweight enclosures and heat sinks. But it caps out at 12 mm maximum — sand casting has no upper limit. Heavy-section structural components, valve bodies, and pump housings often require wall thicknesses die casting cannot produce.
What the Real Cost Comparison Looks Like
Piece price comparisons between die casting and sand casting are misleading without tooling amortization and post-processing in the math.
Tooling Investment
Sand casting pattern tooling runs $500 to $7,500 depending on complexity. A die casting mold starts at $20,000 and reaches $75,000 to $250,000 for large or complex aluminum dies. That is a 10x to 50x difference in upfront capital before a single part ships.

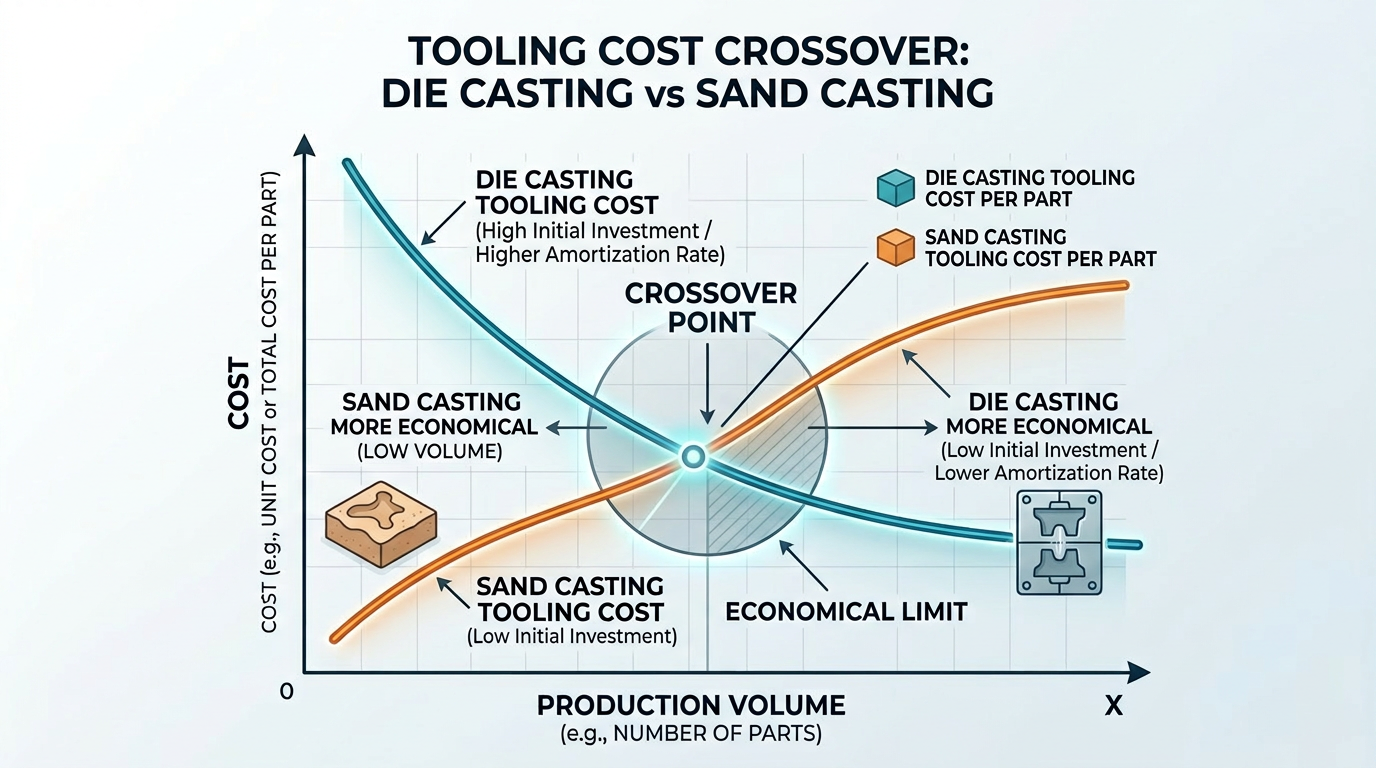

Where both processes are physically viable, that tooling gap creates a crossover volume: below it, sand casting costs less in total; above it, die casting’s lower piece price overcomes the tooling premium.
But no crossover number is universal. It shifts with part complexity, alloy, die life, and — critically — machining requirements. For ferrous pump housings, valve bodies, and gearbox cases, there is no crossover to model at all — sand casting is the only viable process at every volume, and the cost question becomes pattern amortization against machining scope.
The Hidden Cost: Post-Processing
Sand castings typically need shot blasting plus machining on precision surfaces. That machining step adds 20-60% to the piece cost. Die castings usually need only light deburring and minimal machining.
When you factor in total landed cost, a sand casting that wins the RFQ on piece price can land well above it once every mating face, bore, and flange is machined. The piece price gap narrows or widens depending entirely on how many surfaces require tight tolerances.
I have seen procurement teams save 20% on piece price with sand castings and lose 40% on rework and machining when they did not model the full cost chain. The question is never “which process is cheaper per part” — it is “which process delivers the lowest total landed cost at my volume.”

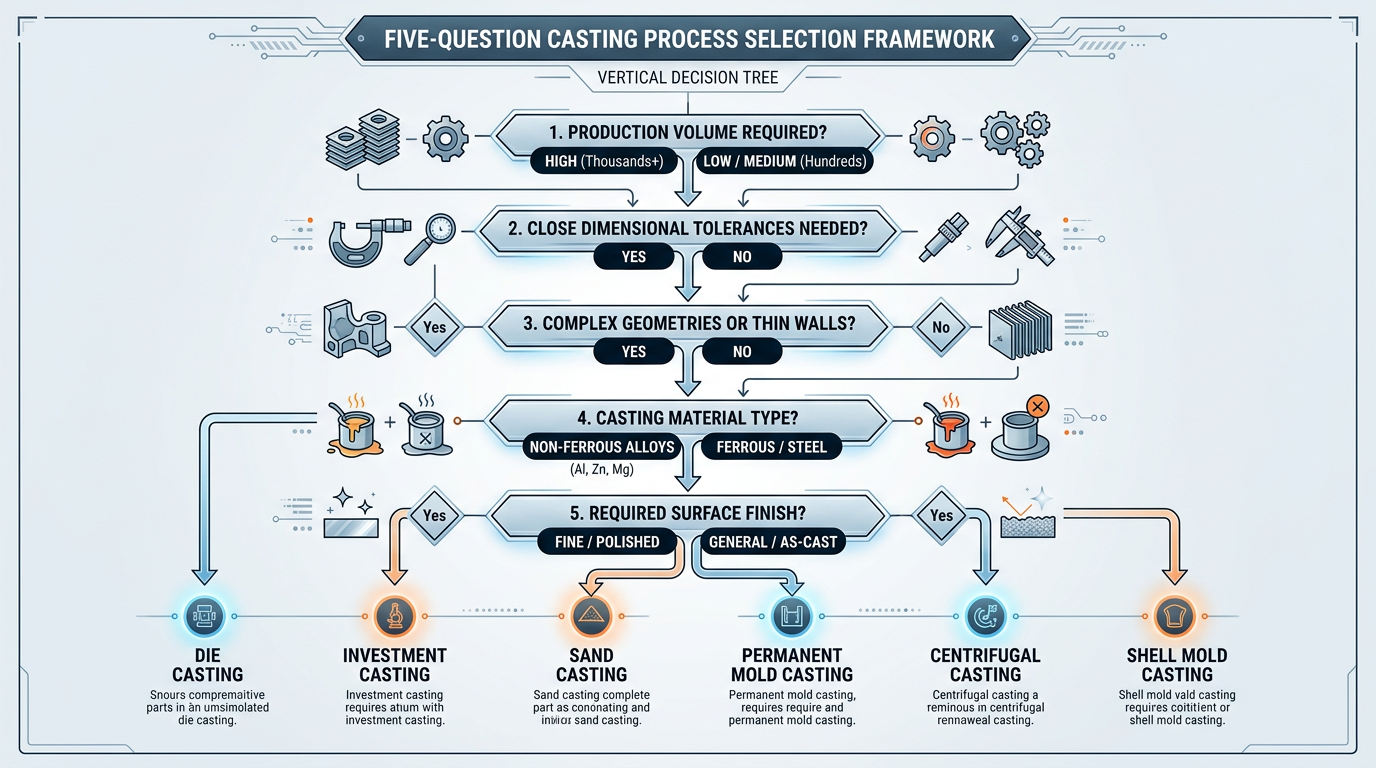

The Five-Question Process Selection Framework
The default approach frames this as a volume question. It is not. Run through these five questions in order, and you will have your answer before you ever discuss production quantities with a supplier.
Question 1: Does your alloy require ferrous material?
Carbon steel, ductile iron, gray iron, stainless steel — if yes, die casting is eliminated. Sand casting, investment casting, or permanent mold are your paths. Skip to Question 4.
Question 2: Does your part exceed 50 kg?
If yes, die casting is impractical. Sand casting handles the weight.
Question 3: Does your geometry require walls over 12 mm or complex internal passages?
Thick sections and internal cavities via sand cores are sand casting advantages. Die casting is limited to thinner, simpler geometries (or requires costly side-actions and multi-slide tooling).
Question 4: What is your annual volume and program life?
Now volume enters — but only after the first three questions have not already decided the answer. In the narrow non-ferrous window where both processes compete, the crossover typically falls in the low thousands of units, depending on complexity and die life.
Question 5: What is the total landed cost including tooling amortization, machining, finishing, and logistics?
Model the full cost chain for both processes. Include pattern or die cost amortized over expected life, piece cost, machining cost for each critical surface, finishing, inspection, and freight. The process with the lower total landed cost wins — not the lower piece price.
Most engineers get to Question 1 or Question 2 and already have their answer. The volume discussion in Question 4 only applies to non-ferrous, small-to-medium parts where both processes are physically viable.
The Bottom Line
Start every casting process decision with alloy and part size, not volume. If your component requires any ferrous material or exceeds 50 kg, sand casting is your process — no analysis needed, and a foundry with in-house machining like gray iron and steel sand casting with CNC finishing closes the surface-finish gap that drives most engineers toward die casting in the first place. For non-ferrous parts within die casting’s size range, model the total landed cost at your production volume before committing to tooling. The lowest piece price on an RFQ rarely translates to the lowest cost in your warehouse. Run the five questions, build the cost model, and let the numbers make the decision.
