Sand casting shapes metal as a liquid, poured into a sand mold and solidified in place; forging shapes it as a solid, squeezed between dies until it takes their form. Every other difference follows from that one — how strong the part is and in which direction, what shapes and sizes it can take, what the tooling costs, and how much machining stock it carries. This comparison is for the ferrous housing, body, arm, or flange where someone has asked “why not forge it?” and the answer has to hold up on the drawing.
What Is Sand Casting
Sand casting pours molten metal into a cavity formed in bonded sand, lets it solidify, and breaks the sand away to recover the part. The cavity comes from a pattern — wood, plastic, or metal, depending on run length — and any internal passage comes from a sand core set into the mold before it closes. Once the metal is poured, solidification does the rest; the foundry’s work is in the setup.
Liquid metal shrinks as it freezes, so every heavy section has to be fed from a riser that stays liquid longer than the section it feeds; size the riser neck too small and the last metal to freeze pulls a shrinkage cavity into itself. The grain that forms is equiaxed and randomly oriented, which is why a casting has the same properties in every direction.
What the process gives in return is geometric freedom. Cores form passages and enclosed cavities, wall thickness can vary across the part, and bosses, ribs, and undercuts need no more than a parting-line plan and about 1.5° of draft to draw the pattern. Size is limited by the mold box and the melt you can pour, not by press tonnage.
What Is Forging
Forging heats a steel bar or billet and deforms it between dies, under a hammer or press, until it fills the die impression; the flash squeezed out at the parting line is trimmed off afterward. The metal never melts. It arrives as rolled bar whose porosity was closed at the mill, and the hot work refines the grain further and stretches it into a grain flow that follows the direction of deformation.

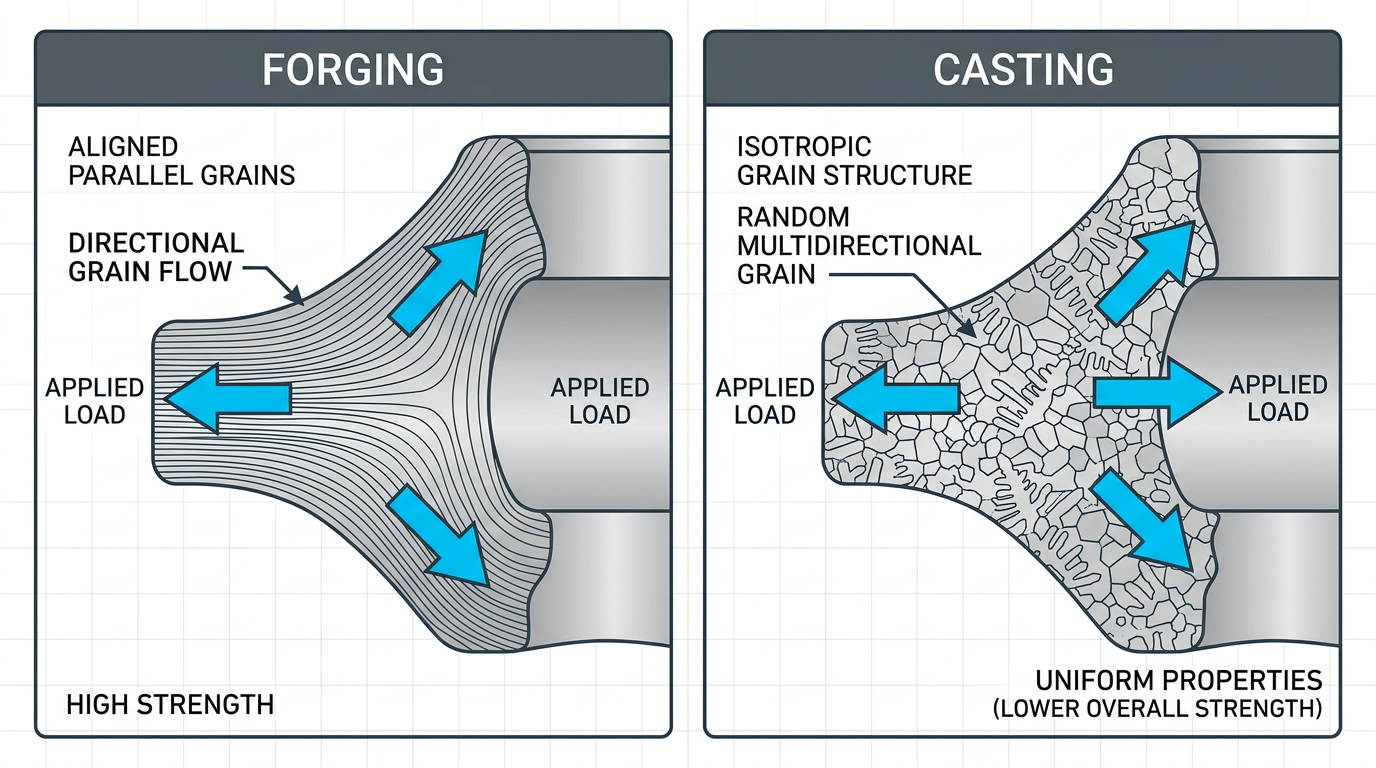

That grain flow is forging’s defining property. Where the flow follows the part’s contour — along a connecting rod, around a shaft’s shoulder — ductility, impact toughness, and fatigue strength are higher in that direction than across it. A forging is strongest along its grain and weakest across it; a casting is the same in every direction.
The die is forging’s constraint. Solid dies cannot form an enclosed cavity, so there are no cored passages; the impression needs 5–10° of outside draft and more on inside surfaces to release, and sharp corners in the die fail early, so every edge carries a generous radius. Bores, undercuts, and cross holes are machined in afterward or not at all.
Sand Casting vs Forging
Forging wins on strength along the grain, fatigue life, and finish; sand casting wins on geometry, size, tooling cost, and short runs. The table gives the row-by-row picture. Three of its rows — strength, dimensional accuracy, and machining — need qualifying before you carry them onto a drawing.
| Feature | Sand Casting | Forging |
|---|---|---|
| Manufacturing principle | Molten metal poured into sand mold | Solid metal compressed into shape |
| Material state | Liquid | Solid or semi-solid |
| Part strength | Moderate | High |
| Fatigue resistance | Moderate | Excellent |
| Internal porosity risk | Relatively high | Very low |
| Grain structure | Random | Grain flow follows part geometry |
| Shape complexity | Excellent | Moderate |
| Internal cavities | Easy with sand cores | Difficult |
| Large components | Excellent | Possible, but equipment-intensive |
| Dimensional accuracy | Moderate | Good |
| Surface finish | Rougher | Better |
| Tooling cost | Low to moderate | Moderate to high |
| Small production runs | Very suitable | Usually less economical |
| High production volumes | Suitable | Excellent |
| Machining requirement | Often higher | Usually lower |
| Typical products | Pump housings, engine blocks, machine bases | Shafts, gears, connecting rods, axles |
The strength and fatigue rows are true, but the figures usually quoted to prove them compare forged steel with ductile cast iron. Those are real gaps — between two different materials.
The same steel made both ways is a closer race. Steel Founders’ Society of America data for cast 8630 against wrought 8640 at equal hardness put both at 138 ksi tensile strength; the wrought bar’s advantage is elongation, 27% against 15%, and fatigue life in un-notched sections. In notched sections the two fatigue curves nearly coincide.
What survives an equal-alloy comparison is direction. A forging’s ductility, impact strength, and fatigue life are higher along the grain flow and lower across it; a casting’s are the same in every direction and, for equivalent alloys, sit between the forging’s longitudinal and transverse values. Load a part along one axis and the forging’s directionality is an advantage. Load it from several directions, as most housings are, and it is not.
Dimensional accuracy and machining stock are where the table overstates the gap. Forging is tighter, but against a machine-moulded casting on a metal pattern it is within about one tolerance grade; the wider gap — three to five grades — is against hand-moulded, short-run casting. Both routes leave machining stock on every functional face.
| Route | Total tolerance on a 100–400 mm dimension (ISO 8062:1994 grade) | Machining stock per surface, 250–400 mm part |
|---|---|---|
| Closed-die steel forging, normal quality, 10–50 kg | 2.8–4.0 mm | 2.5 mm minimum |
| Sand casting, machine-moulded, carbon steel | 1.8–9 mm (CT8–12) | 2.5–5 mm |
| Sand casting, machine-moulded, ductile iron | 1.8–9 mm (CT8–12) | 1.8–3.5 mm |
| Sand casting, hand-moulded, carbon steel | 5–16 mm (CT11–14) | 3.5–10 mm |
| Sand casting, hand-moulded, ductile iron | 5–16 mm (CT11–14) | 2.5–5 mm |
The forging figures are for a simple shape in carbon steel; alloy steel or a complex impression steps the band wider. The casting figures depend on the molding method more than on the alloy: short runs on wooden patterns land in the hand-moulded rows, and a metal pattern on a molding machine is what buys the tighter grades.
How to Choose Between Sand Casting and Forging

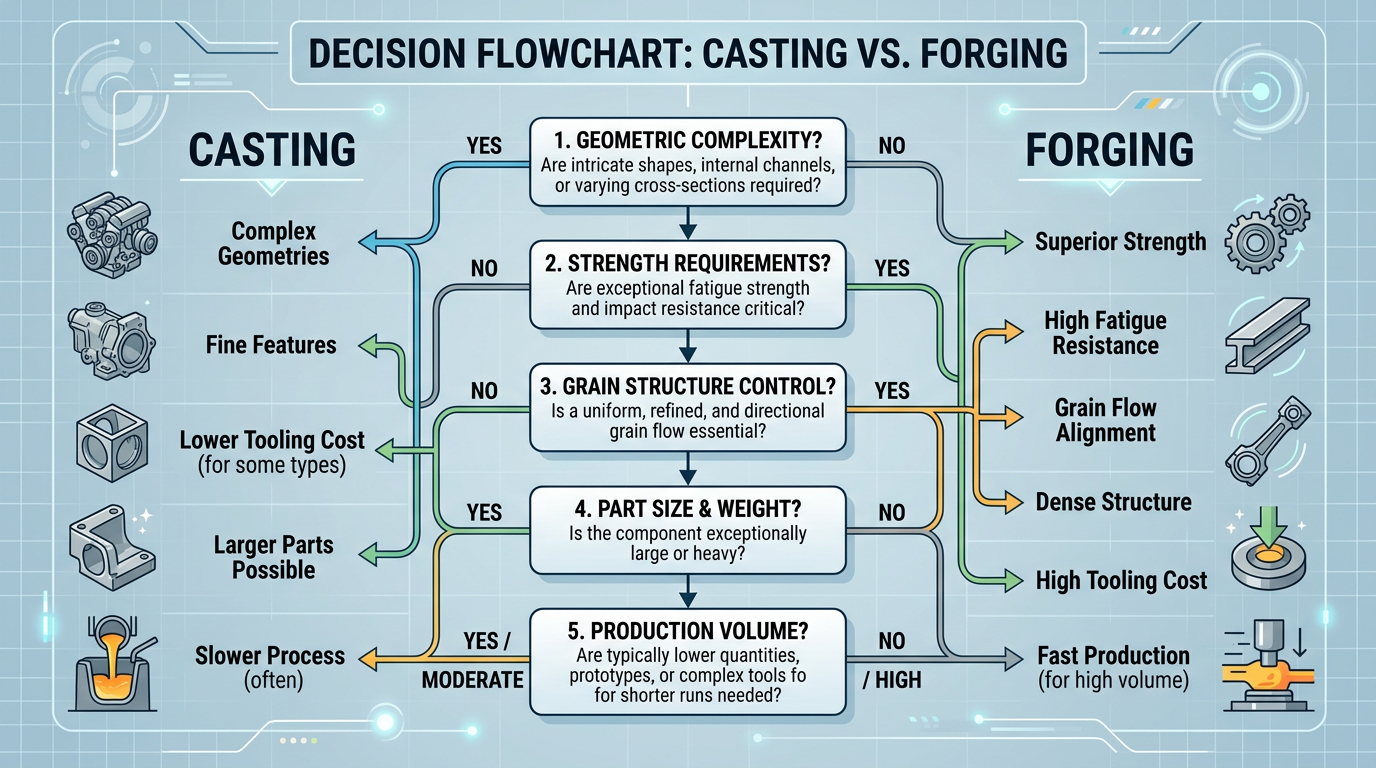

Forge the part when its main load runs along one axis, its shape is simple enough to fill a die, and the run is long enough to pay for the die; cast it when geometry, size, or quantity rules, which for housings, bodies, bases, and flanges they usually do. Five questions settle most parts.
- Load path: A shaft, tie rod, or connecting rod carries its load along one axis, and forging’s grain flow puts its extra ductility and fatigue life exactly there. A gearbox or pump housing is loaded from several directions at once, and the casting’s uniform properties serve it as well or better.
- Geometry: Cored passages, enclosed cavities, varying wall sections, and undercuts are casting features. Dies release only with 5–10° of draft and form no internal cavity, so a forging gets those features from the machine shop or not at all.

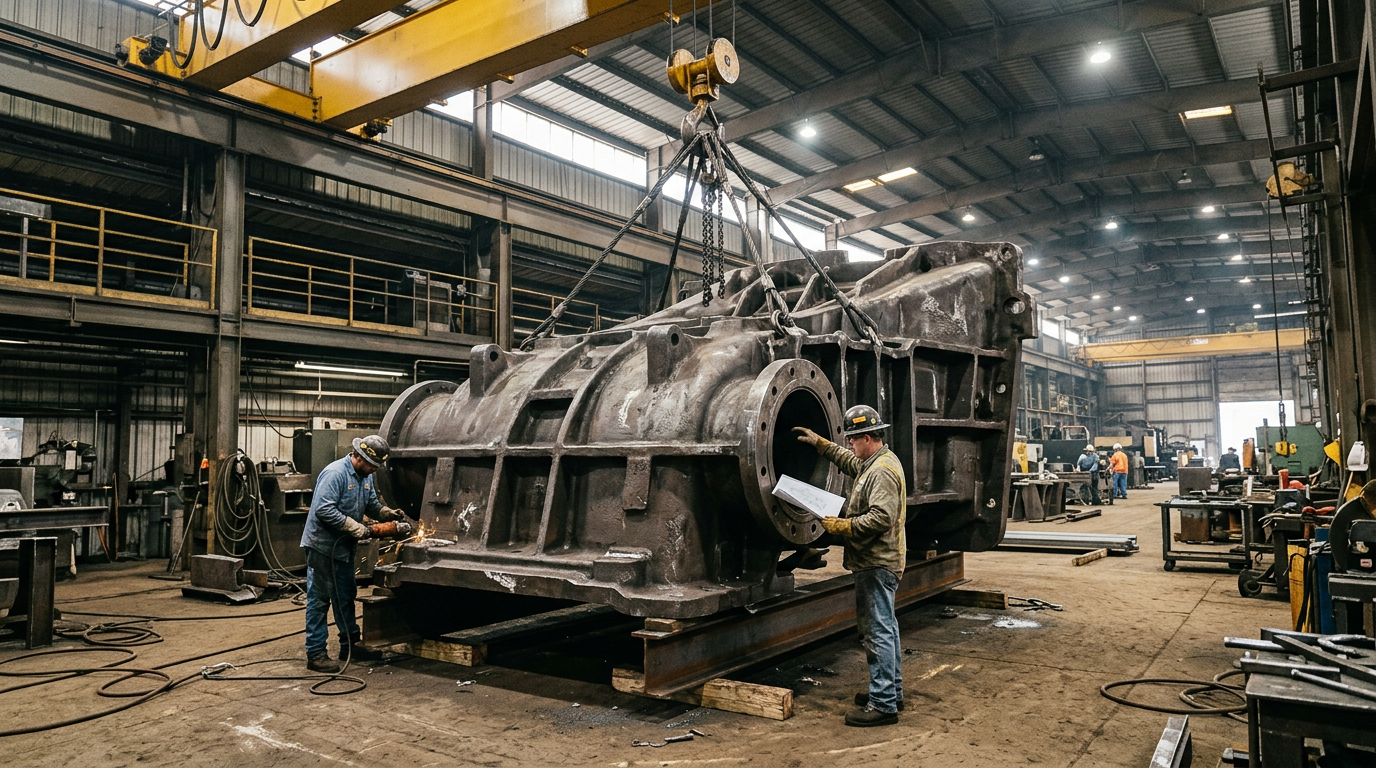

- Size: Above 250 kg or 2.5 m, closed-die forging leaves the standard tolerance tables. Most medium-to-large machinery components are cast for that reason alone.
- Quantity and design maturity: A pattern is cheap to make and cheap to change; a die is neither. Prototypes, short runs, and designs still being revised are castings.
- Tolerance and machining budget: Specify forging for accuracy only if the alternative is a hand-moulded casting. A machine-moulded casting on a metal pattern is within about one grade, and both parts are machined on their functional faces anyway.

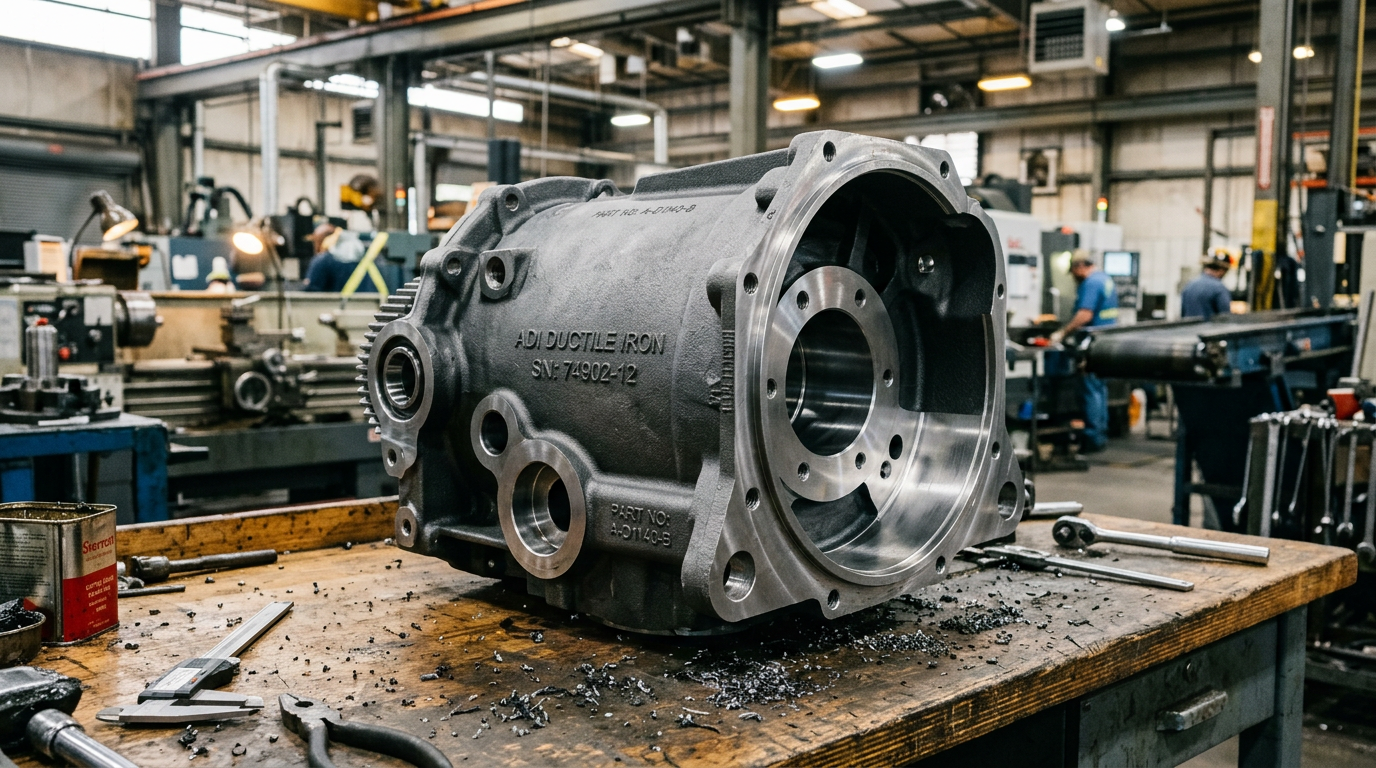

Run the usual ferrous machinery parts through those five and they sort cleanly. A ductile iron gearbox housing or hydraulic pump body — cored bores, varying walls, loads coming in through several bearing seats — is a casting on every criterion but the strength row, and that row favors forging only along the grain. The shaft that runs through it is a forging.
A carbon steel flange or lever arm sits between the two. Forge it if it runs in volume and carries one load axis; cast it if the run is short or the shape carries bosses and passages.
Conclusion
The difference between sand casting and forging is the state of the metal when it takes shape, and that decides the rest. A forging is stronger along its grain flow and comes off the die with a little less stock to remove; a casting is the same in every direction, takes any geometry a core can form, and reaches sizes and run lengths a die cannot. Choose by load path, geometry, size, and quantity, and weigh the strength argument against the same alloy — not against a different one.
