Coated sand casting and resin sand casting differ in when the resin meets the sand and how it cures. Coated sand arrives with a dry phenolic resin already bonded to every grain and hardens by heat against a hot metal pattern into a thin shell; resin sand is plain sand that gets liquid resin and a catalyst dosed in at the mixer and sets by chemical reaction, at room temperature, in a flask. On a quote sheet, “coated sand” means shell molding or shell cores, and “resin sand” means furan or phenolic no-bake molding.

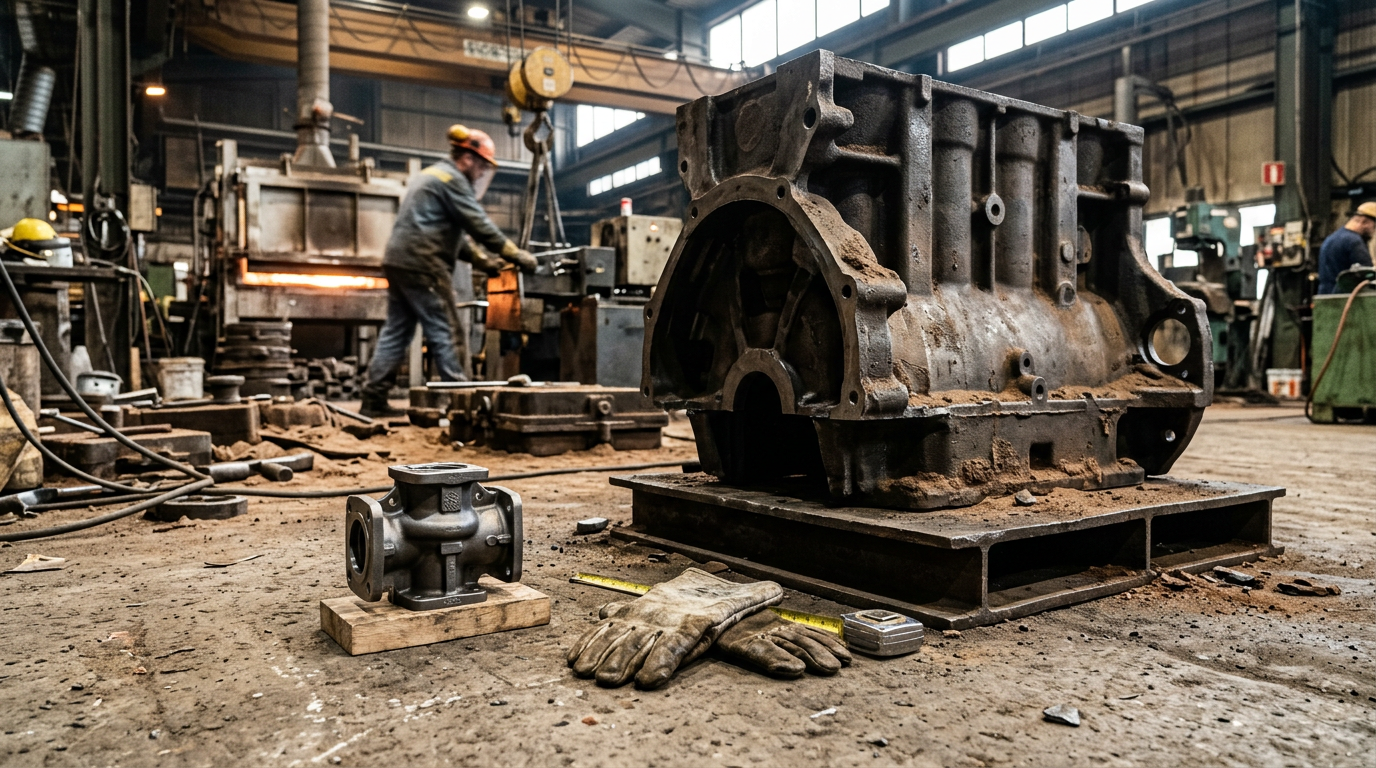

That one difference sets everything else. The heat-cured shell gives the smoother surface, the tighter dimensions and the thinner walls, but it needs a heated metal pattern and enough pieces to pay for it, and it runs out of room at roughly 100 lb. Resin sand takes any pattern material, any quantity down to one, and any size the flask and the crane can handle, which is why housings, counterweights and large flanges are resin sand jobs.
What Is Coated Sand Casting
Coated sand casting is the shell process: silica sand pre-coated with a dry phenolic resin is dumped or blown onto a metal pattern heated to around 200–250 °C, the resin at the pattern face melts and fuses the grains within seconds, and the shell that forms, 6 to 9 mm thick, is cured on the pattern for a minute or two and stripped. Two shells clamped together are the mold; one shell blown in a heated core box is a shell core.
Three things follow from the hot metal pattern. The sand can be fine and the resin skin reproduces a polished metal face almost exactly, so an as-cast shell surface sits at Ra 1–3 µm. The shell is thin, so it heats up fast when metal hits it and vents freely; sections down to about 2 mm fill, against 3 mm for sand molds generally. And the pattern is machined metal heated every cycle, which is where the tooling cost comes from and why the process needs a run to pay for it.
What Is Resin Sand Casting
Resin sand casting is no-bake (air-set) molding: dry silica sand runs through a continuous mixer where liquid furan or phenolic resin and its catalyst are dosed in at about 1% of sand weight or less, the wet mix is filled around the pattern in a flask or box, and it hardens by chemical reaction at room temperature. Set time is tuned through the catalyst from a couple of minutes to about half an hour, which is what lets a large flask be filled and compacted before the mix stiffens.

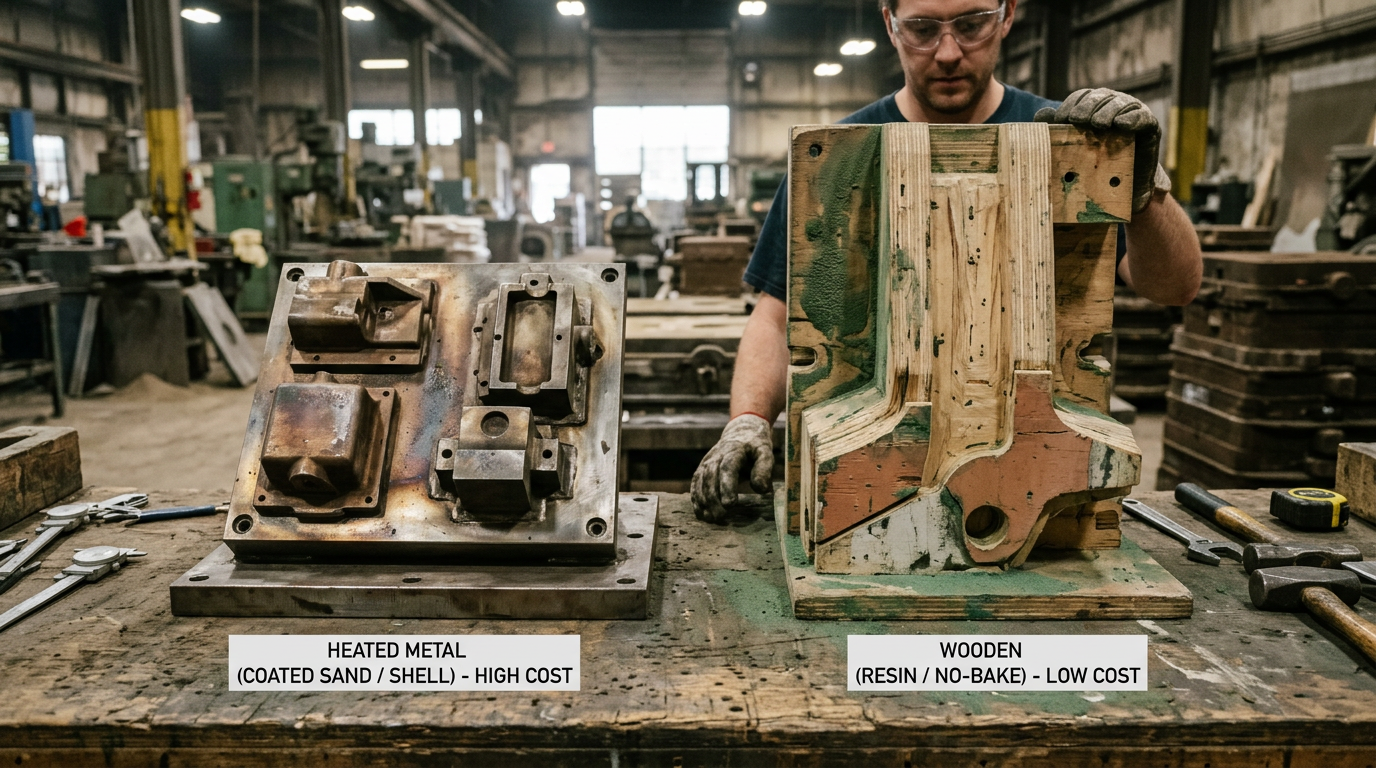

Nothing in the cycle is heated, so the pattern can be wood, plastic or resin board for a one-off and metal only when the run justifies it. The mold is a solid block, so casting size is set by the flask, the crane and the ladle rather than by the process; textbook tables give it no upper weight limit.
The trade is finish and fine detail. The grains are coarser than shell sand and the mold face is never pressed against hot polished metal, so as-cast surfaces are rougher: a published measurement on ductile iron poured in furan and phenolic no-bake molds came in at 8 to 10.5 µm Ra, against 1 to 3 µm for shell. The process is at its best in moderate and heavy walls, where the surface is machined off anyway.

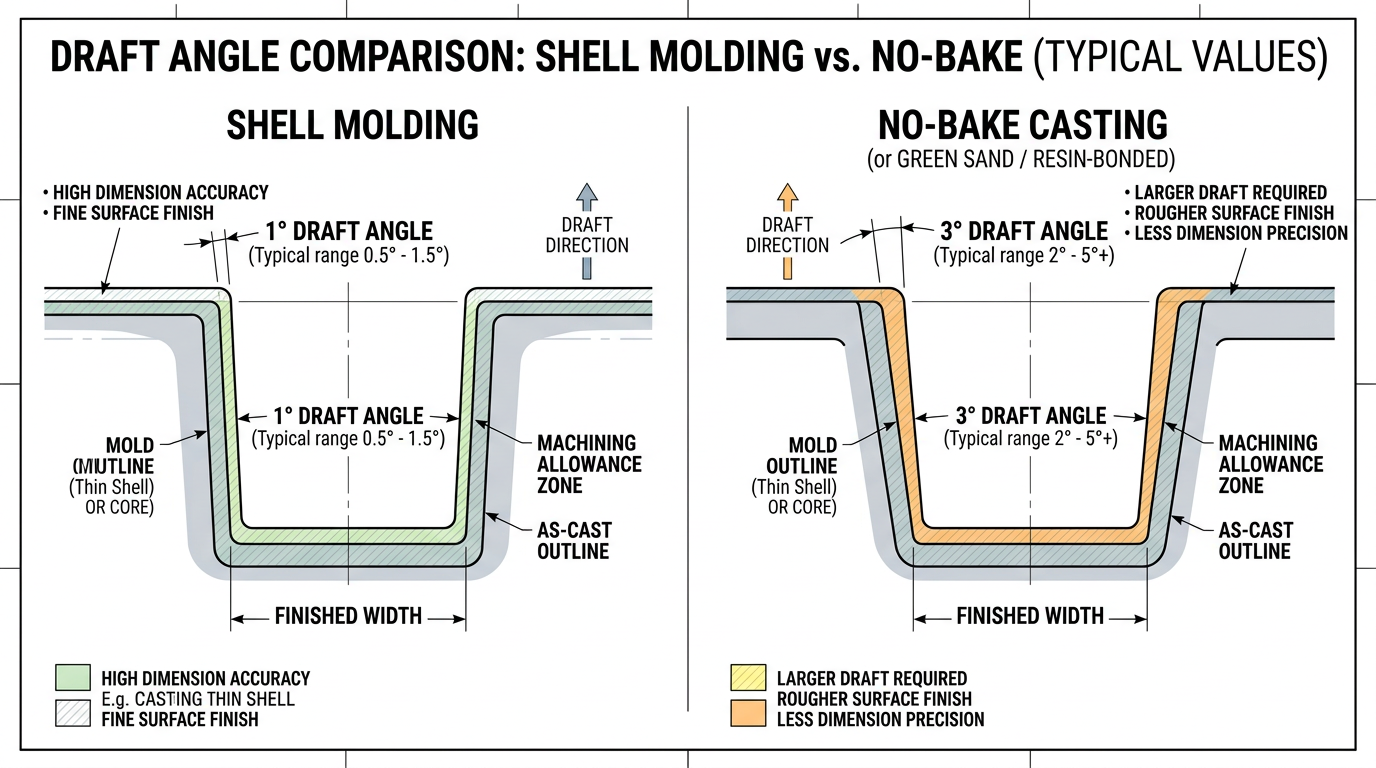

Coated Sand vs Resin Sand Casting
Coated sand wins on finish, accuracy, thin walls and rate; resin sand wins on size, tooling cost and low quantities. Size is the row that decides most jobs, because a part small enough to shell is the one that gets the shell finish.
| Feature | Coated Sand Casting | Resin Sand Casting |
|---|---|---|
| Binder | Resin pre-coated on sand grains | Resin mixed with sand during molding |
| Typical process | Shell molding / shell core | No-bake molding |
| Curing method | Primarily heat | Chemical reaction |
| Pattern material | Usually metal | Metal, wood, resin, or composite |
| Tooling cost | Higher | Lower to moderate |
| Surface finish | Excellent | Very good |
| Dimensional accuracy | Excellent | Good to very good |
| Mold strength | High | High |
| Casting size | Small to medium | Medium to very large |
| Wall thickness capability | Excellent for thin sections | Better suited to moderate and thick sections |
| Production rate | High | Moderate |
| Automation | Very suitable | Possible but often less automated |
| Best production volume | Medium to high volume | Low to medium volume |
| Pattern life | Long | Depends on pattern material |
| Mold preparation | Fast after tooling is established | Longer mixing and curing process |
| Cost per casting | Competitive at high volume | Competitive for large or lower-volume parts |
The tolerance gap is smaller than the table’s wording suggests. ISO 8062’s tolerance grades put machine-molded sand and shell molding in the same long-series band, CT 8 to 12; the only sand process the standard rates coarser is hand molding.
What separates the two on accuracy is consistency at the fine end of that band. The Steel Founders’ Society’s capability study calls shell the tightest of all sand molding processes, with the caveat that it is limited in casting size.
Size and volume are where the split is sharp. The same SFSA study models shell for castings under 100 lb and no-bake for castings up to 2,000 lb. Shell’s economic minimum is around 100 pieces because a heated metal pattern has to be amortized, and its tooling lead time is weeks; resin sand quotes one piece, and the first mold from a wood pattern is days away. Once shell tooling exists, though, a line turns out 30 to 220 molds an hour, well beyond a mixer-and-flask cycle.
When Should You Choose Coated Sand Casting?
Choose coated sand when the part is under about 100 lb, the quantity runs to hundreds a year or more, and the drawing carries at least one feature resin sand cannot hold: a wall under 3 mm, an as-cast surface that has to stay as-cast at Ra 3 µm or better, or a dimension at CT 8 or 9 that you would rather not machine. If none of those is on the drawing, the shell premium buys a finish that gets machined off.
When only the inside of the part needs shell quality, specify shell cores in a resin sand mold. The cored passages of a hydraulic pump housing or the waterway of a valve body come out with shell surface and shell accuracy, the outside is a resin sand casting at resin sand cost, and the tooling is a core box rather than a full heated pattern. On parts above 100 lb this is the usual way coated sand earns its place.
When Should You Choose Resin Sand Casting?
Choose resin sand when any one of three things is true: the part is over about 100 lb, the quantity over the tooling’s life is low (one piece up to about a hundred), or the sections are moderate to heavy and every functional surface is machined. Gearbox and bearing housings, larger pump and valve bodies, flywheels and flanges in ductile iron and steel, and counterweights in gray iron are resin sand jobs by default; the open question on those is the grade, not the process.
It is also the process for a part whose design is still moving. A wood or resin pattern can be reworked between pours; a heated steel shell tool is a re-machining job.

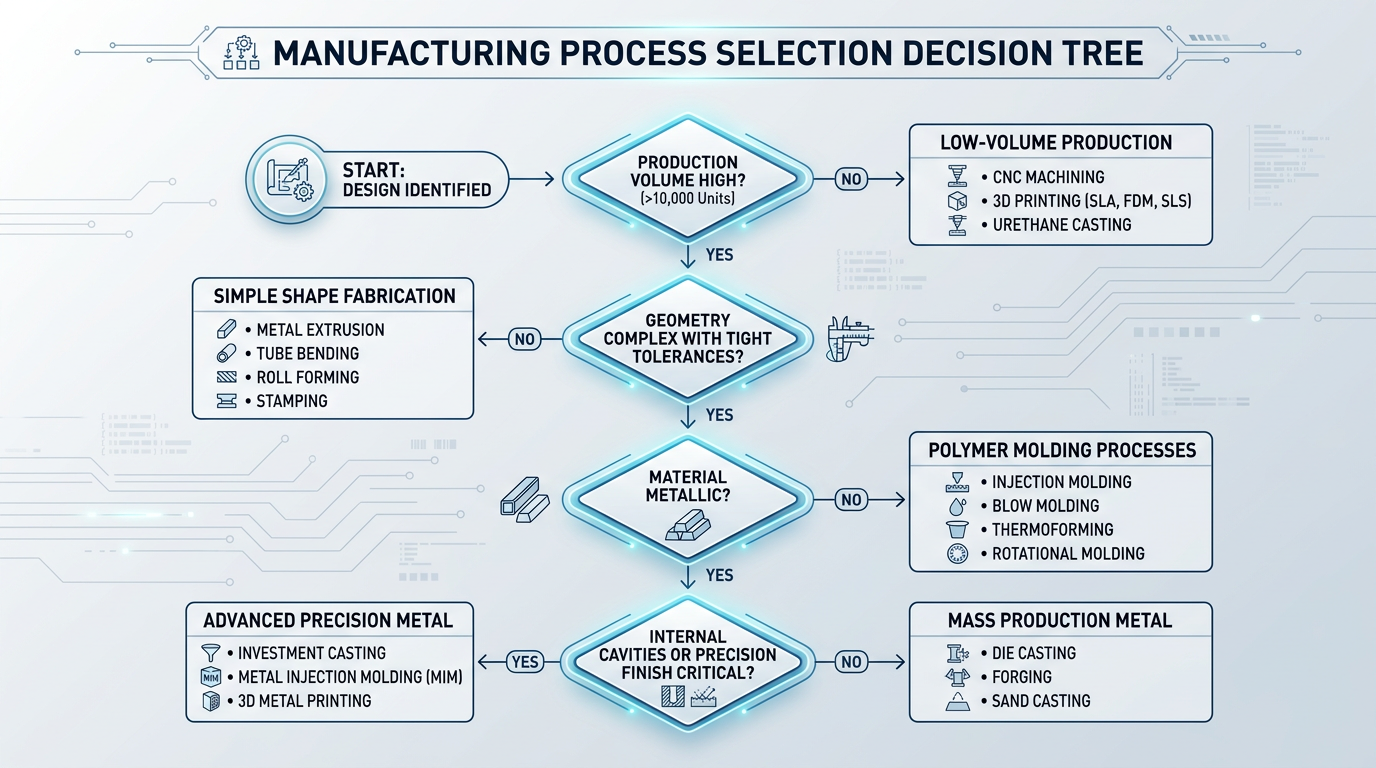

Conclusion
Size first, then quantity, then the drawing. Under 100 lb, in the hundreds a year, with a thin wall or an as-cast surface that matters: coated sand. Over 100 lb, or few of them, or heavy sections that are all machined: resin sand. Where only the passages need the shell finish: shell cores in a resin sand mold. If a part sits near the line, the drawing and the annual quantity are all a foundry running both lines needs to say which one it would quote.
