Resin sand casting is sand casting in a mold bonded by a synthetic resin that hardens through a chemical reaction, rather than by the clay and water that hold green sand together. Sand is still 97–99% of the mix; the resin and its catalyst make up the remaining 1–2%. That small fraction changes what the mold can do — it sets into a rigid, self-supporting block that takes the metal’s pressure without heavy ramming.
For a buyer that shows up as tolerance. Production iron castings made in chemically bonded sand are normally specified to ISO 8062 grades DCTG 8 through 12, and the reason is mold rigidity: the walls hold their position while the metal solidifies instead of moving under it.
The term is used in two senses in the trade. Broadly it means any sand bonded by a synthetic resin, which is how this article and the table below use it — furan, phenolic, no-bake, shell and cold box all qualify. Narrowly, in the sense that applies when someone sets resin sand against coated sand, it means the room-temperature no-bake systems alone.
How Does Resin Sand Casting Work
Resin sand casting works by mixing dry sand with a liquid resin and a catalyst, packing that mix around the pattern before it sets, and letting it harden at room temperature into a mold that stands on its own. There is no oven and no clay: the sand goes hard once, gets poured, and is then broken out and reclaimed.
STEP 1: Build the pattern and set the flask
The pattern carries the part geometry plus shrinkage allowance and machining stock. It takes far less abuse than it would in green sand — nothing is jolted or squeezed against it — so pattern wear is lower and lighter pattern materials hold their dimensions longer. The pattern is coated with a release agent and set in the flask along with the gating and risers.
STEP 2: Mix the sand with catalyst first, then resin
Dry sand, catalyst and resin are metered into a continuous mixer that discharges straight into the flask. The order is not arbitrary: the catalyst goes onto the sand and is mixed through before the resin is added.

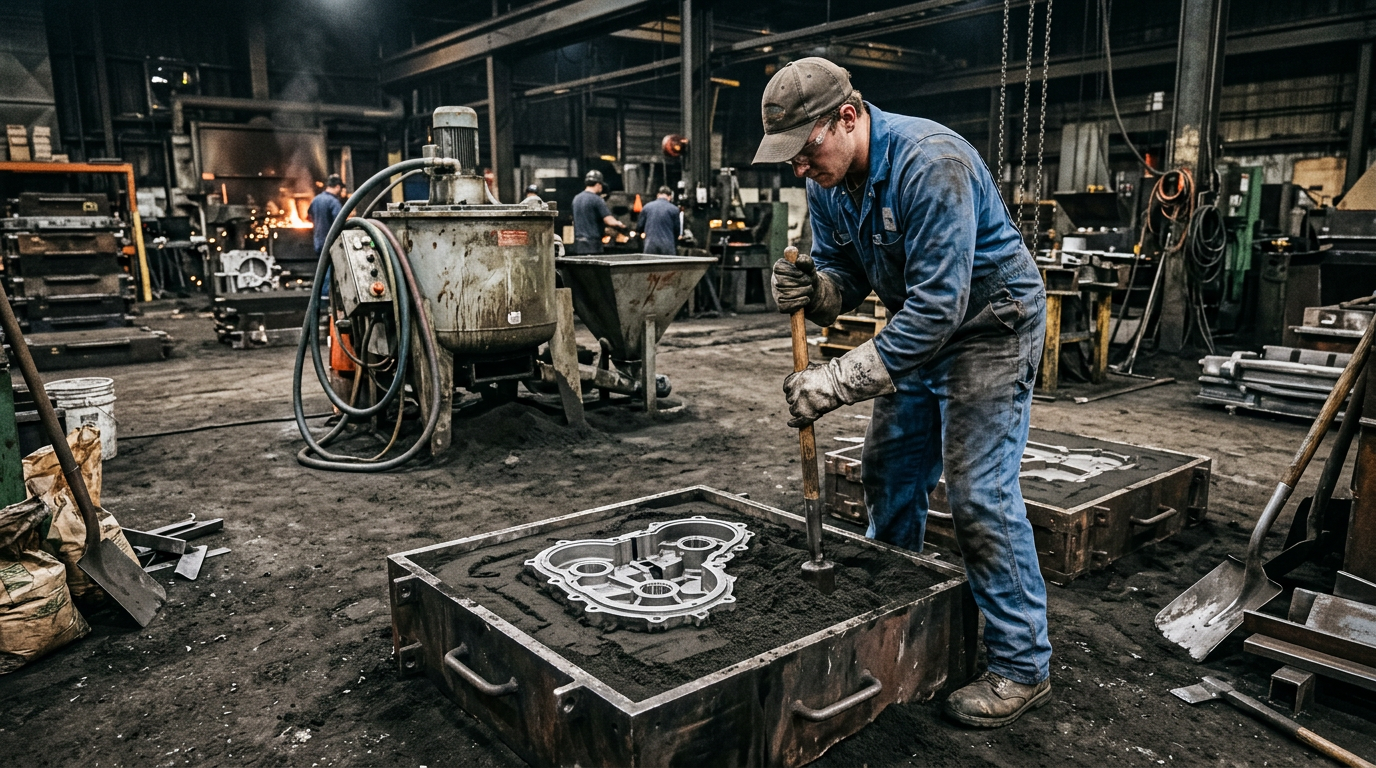

STEP 3: Fill and compact before the work time runs out
The clock starts at the mixer. Work time is how long the mix stays plastic enough to compact; strip time is when it is rigid enough to pull the pattern. Catalyst type and concentration set both, and the range available is wide — strip times run from a few minutes to more than two hours.
STEP 4: Cure at room temperature, then strip the pattern
Nothing is heated. The binder cures from the outside in — sand exposed to the air hardens before the sand below it — so a mold is given time past its nominal strip time rather than pulled the moment the surface feels hard.
STEP 5: Coat the mold, set the cores, close up
The mold face gets a refractory wash, brushed or sprayed on, which is what keeps liquid metal from penetrating between the grains and burning sand onto the casting. Cores are set — often cold-box cores, a different resin system living in the same mold — and the cope is closed and clamped or weighted against the metal’s lift.
STEP 6: Pour, cool, break out
Chemically bonded molds hold their strength while the metal is hot and then break down cleanly, which is most of their shakeout advantage: the mold comes apart under vibration instead of having to be dug out of the flask. The casting is then cut off its gating and risers and sent to cleaning.
STEP 7: Reclaim the sand
Spent resin sand cannot simply be re-tempered and put back in the loop the way green sand is, because the binder on every grain has already reacted. Mechanical reclamation scrubs that spent film off the grains; thermal reclamation burns it off and recovers up to 90–95% of the sand for reuse.
Common Types of Resin Sand Casting
Five systems cover nearly all resin sand production, and what separates them is how the binder is cured: a liquid catalyst mixed into the sand, a gas blown through it, or heat.
| Resin sand process | How it cures | Common characteristics |
|---|---|---|
| Furan resin sand | Chemical catalyst | Common for iron and steel castings |
| Phenolic resin sand | Chemical or thermal curing | Strong molds and good dimensional stability |
| No-bake resin sand | Cures at room temperature | Popular for medium and large castings |
| Shell molding | Resin-coated sand hardened by heat | Excellent surface finish and precision |
| Cold-box process | Gas catalyst | Widely used for producing cores |
For medium-to-large ferrous work the practical answer is narrower than the table looks. The mold is a no-bake mold, furan or phenolic; the cores set into it are usually cold box or shell. Shell and cold box earn their rows because their binders are resins too, not because a heavy casting is molded that way.
Furan no-bake is what foundrymen mean when they say acid no-bake — a furan resin and an acid catalyst, nothing else. It holds strength at pouring temperature and shakes out cleanly, which is why it is the everyday mold under iron and steel. Furan resins are graded by their nitrogen and water content, and the low-nitrogen grades are the ones that belong under steel and ductile iron, where nitrogen from the binder turns into pinholes.
Phenolic covers two different systems, so the table’s “strong molds” needs a qualifier. Acid-catalyzed phenolic no-bake is chosen precisely for high hot strength at low cost. The ester-cured alkaline phenolic route runs lower in tensile strength but has proven itself in steel foundries pouring large castings, including pit molds.
“Cures at room temperature” does not separate no-bake from cold box, since cold box also cures against a room-temperature pattern. The difference is how the catalyst arrives. No-bake carries a liquid catalyst mixed through the sand, so the whole batch cures on a clock once it leaves the mixer; cold box compacts the sand first, then blows a vaporized catalyst through it and hardens it almost immediately.
That is why cold box owns core production — the cycle repeats on a blowing machine with no batch waiting to set — while no-bake owns molds for medium and large parts, where sand that stays workable long enough to fill a floor mold is the whole point.
Shell is the outlier of the five: resin-coated sand cured against a heated pattern, which is why it gives the best surface finish and the tightest dimensions of the group. Far more foundries run shell for cores than for molds, though. As a molding process it belongs to small, high-volume parts rather than to the work no-bake handles.
Conclusion
Resin sand is the default when a ferrous casting needs dimensional accuracy and a rigid mold more than it needs the cheapest possible sand — which describes most medium-to-large one-off and short-run work. Green sand still wins on high-volume small parts, where the mold comes off a molding machine and the sand goes straight back into the loop.
Which system a job runs in is the foundry’s call, and it is made from the part: weight, section thickness, alloy, tolerance and finish. For most iron castings the answer is a furan or phenolic no-bake mold with cold-box cores — settled by the drawing and the quantity, not by the process name in the RFQ.
