Shell mold casting can hold draft angles down to one degree — sometimes zero. Green sand needs two to three degrees on the same feature. That difference alone reshapes what a pattern maker can deliver on thin-walled, detail-heavy parts. But the process is not a universal upgrade over green sand, and the trade-offs deserve as much attention as the advantages.
Shell mold casting (also called coated sand casting) uses resin-coated sand cured against a heated metal pattern to form a thin, rigid mold shell. The result is tighter tolerances, smoother surfaces, and thinner walls than green sand — at a higher per-part cost and with real limitations that rarely appear on a supplier’s capability sheet.
How Shell Mold Casting Works

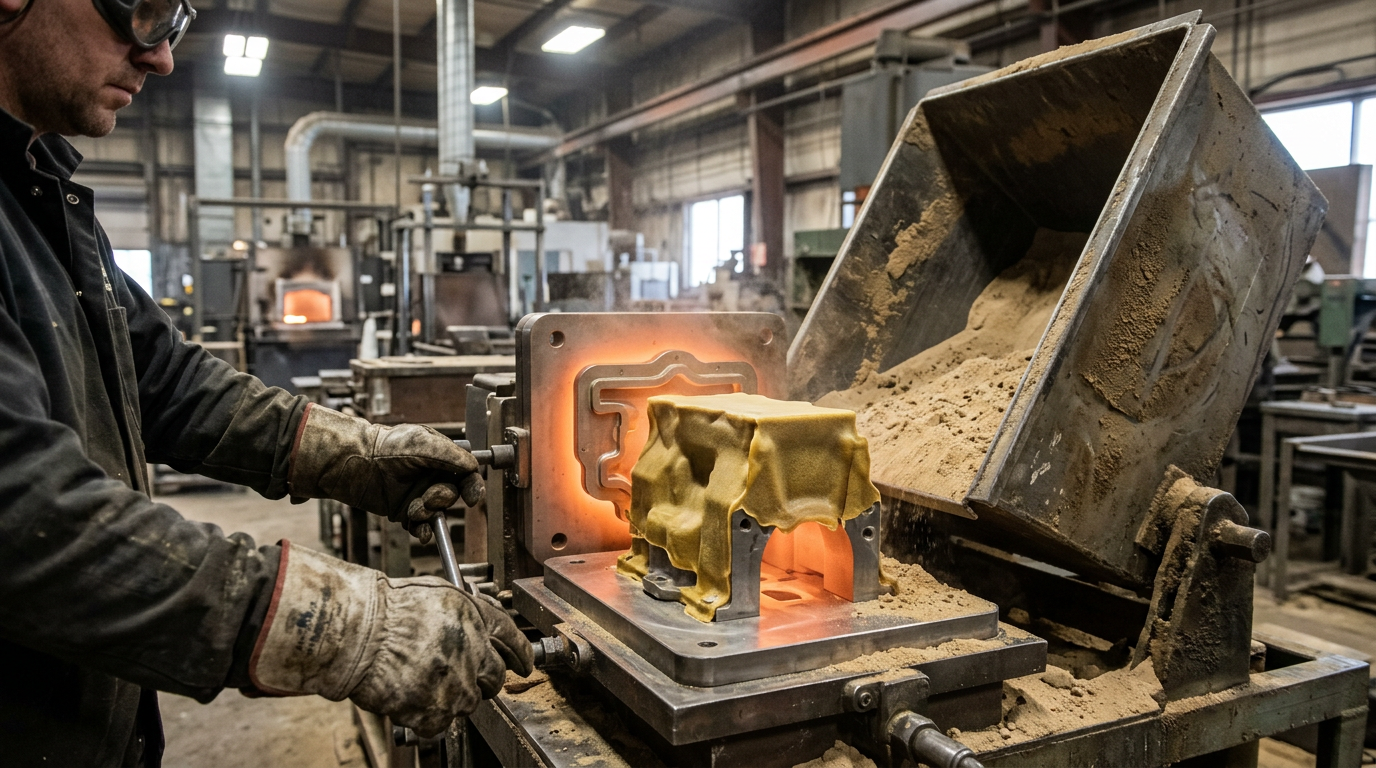

The process starts with a metal pattern heated to 175-370 C. When resin-coated sand contacts that hot surface, the phenolic resin melts and cross-links, bonding sand grains into a solid shell that builds outward from the pattern. The longer the sand stays in contact, the thicker the shell grows.
Shell Formation and Cure
Shell thickness is not a fixed dimension — it is a process variable controlled by dwell time on the pattern. A two-second dwell might produce a 3 mm shell. Hold it longer and you get 10-20 mm. The foundry engineer balances thickness against cycle time and mold strength for each casting. Thicker shells resist metal pressure better but take longer to cure and cost more in resin.
After the initial cure on the pattern, the shell halves go through an oven cure at higher temperature for full cross-linking. Total cure runs two to five minutes on the pattern, then 10-60 minutes in the oven depending on shell size and resin system.
Process Parameters That Control Quality
Three variables interact in shell mold casting, and changing one shifts the others.
- Pattern temperature determines how fast the resin melts and cross-links. Too low (below 175 C) and the shell cures incompletely — it crumbles during handling. Too high (above 370 C) and the resin burns off before the shell bonds, leaving weak spots.
- Dwell time controls shell thickness. The foundry adjusts this per casting to balance strength against cycle time.
- Resin content (3-6% by weight of the sand mix) controls bond strength and gas generation. More resin means a stronger shell but more gas during pour — and more gas means higher porosity risk in the final casting.
Shell molding uses finer sand than green sand casting — typically AFS grain fineness number of 100 or higher, compared to 60-80 for green sand. Finer sand produces smoother casting surfaces, but pushing fineness too high chokes gas escape and trades surface quality for internal porosity. Every parameter is a trade-off, not a dial you turn to “better.”

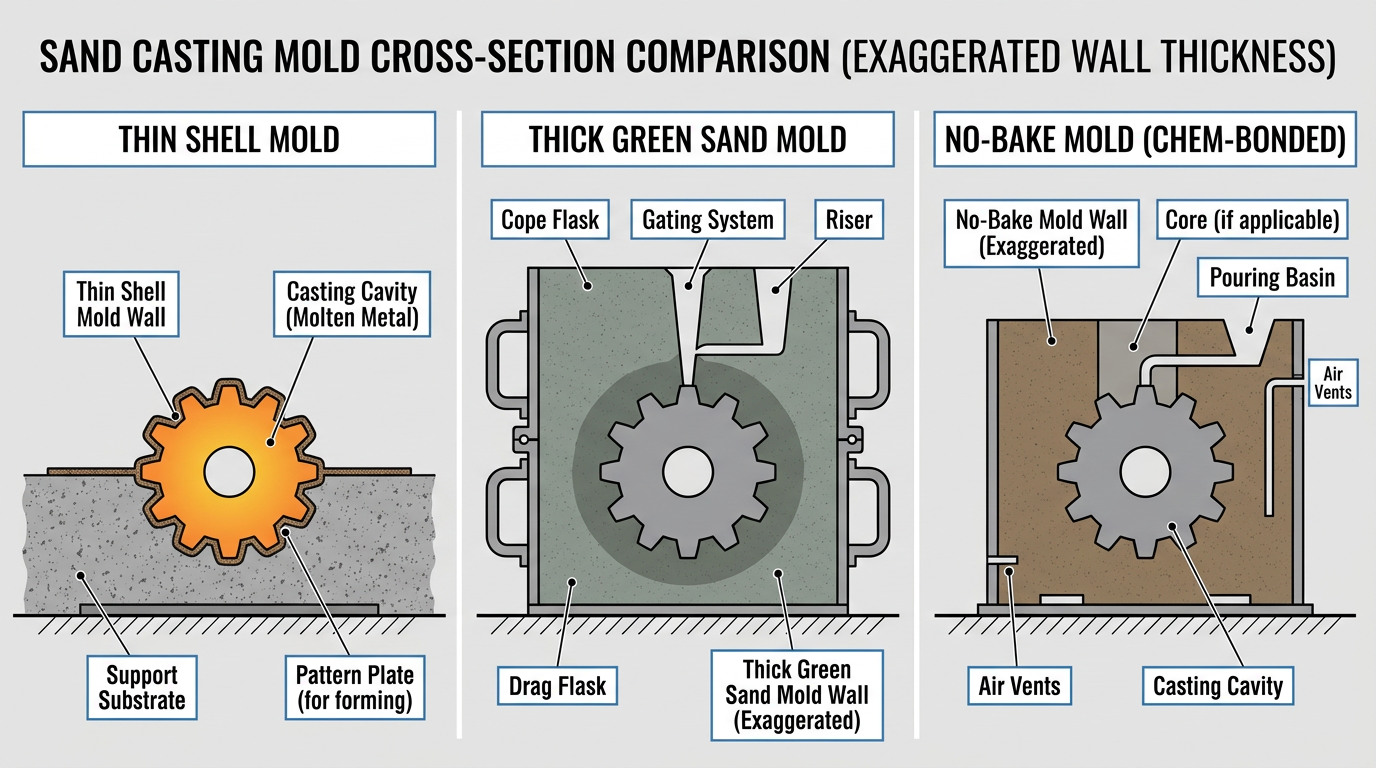

Shell Mold vs Green Sand vs No-Bake
These ranges represent typical production capability, not theoretical maximums.
| Parameter | Shell Mold | Green Sand | No-Bake |
|---|---|---|---|
| Tolerance (ISO 8062) | CT6-CT8 | CT11-CT13 | CT8-CT10 |
| Surface Finish (Ra) | 3.2-12.5 um | 12.5-25 um | 6.3-12.5 um |
| Min Wall Thickness | 1.5 mm (0.06 in) | 4-5 mm (0.16-0.20 in) | 3-4 mm (0.12-0.16 in) |
| Draft Angle | 0.5-1 degree | 2-3 degrees | 1-2 degrees |
| Finish Stock | 0.060 in max | 0.125 in typical | 0.090 in typical |
| Tooling Cost | Higher (metal patterns) | Lower (wood/plastic patterns) | Moderate |
| Per-Part Cost | Higher | Lowest | Moderate |
Shell mold excels at CT6-CT8 tolerances, which means you can hold dimensions roughly two to four CT grades tighter than green sand on the same geometry. For a 100 mm dimension, that is the difference between +/-1.1 mm (CT11) and +/-0.5 mm (CT7).
Before you pour, check whether your part actually needs that precision. If your critical surfaces get machined after casting, you are paying a tolerance premium in the casting process that the CNC mill removes anyway. Specify to function, not to feel safe.
When Shell Molding Is the Wrong Choice
Shell molding has clear limits on part size, production volume, and material compatibility — and specifying it when a simpler process works wastes pattern investment.
Weight and Size Limits
Published weight limits for shell mold casting range from 12 kg to 500 kg depending on which foundry you ask. That ten-to-one spread is not a typo. Traditional dump-box shell molding handles parts in the 0.5-50 kg sweet spot. Larger foundries with custom equipment push beyond that, but at reduced economic advantage over no-bake.
The most common mistake I see in new patterns is assuming one foundry’s published limit applies everywhere. Shell mold weight limits reflect equipment capability — the size of the dump box, the curing oven, the flask support system — not a fundamental process constraint. Ask your specific foundry what they can handle before committing your pattern investment.
Volume and Cost Trade-Offs
Shell molding’s metal pattern tooling costs more than green sand’s wood or plastic patterns. That tooling cost only pays off when you spread it across enough parts. The economic sweet spot sits roughly between a few hundred and several thousand units per year. Below that range, the pattern investment rarely justifies the per-part quality gain. Above it, green sand automation closes the quality gap enough that shell molding’s advantage shrinks.
I have also pulled shell molds off steel pours where the pouring temperature pushed the mold to its structural limits. The thin shell walls — 5 to 10 mm — take thermal shock that green sand absorbs without flinching. Steel in shell molds demands additional mold support and more conservative gating.
The gating design challenge is real. A gating scheme that works perfectly in green sand can fracture a shell mold. The shell is brittle — aggressive metal flow or a poorly placed runner creates enough force to crack the mold mid-pour. Before you pour a new shell mold pattern, always run a trial to confirm the gating handles the metal flow without shell damage.

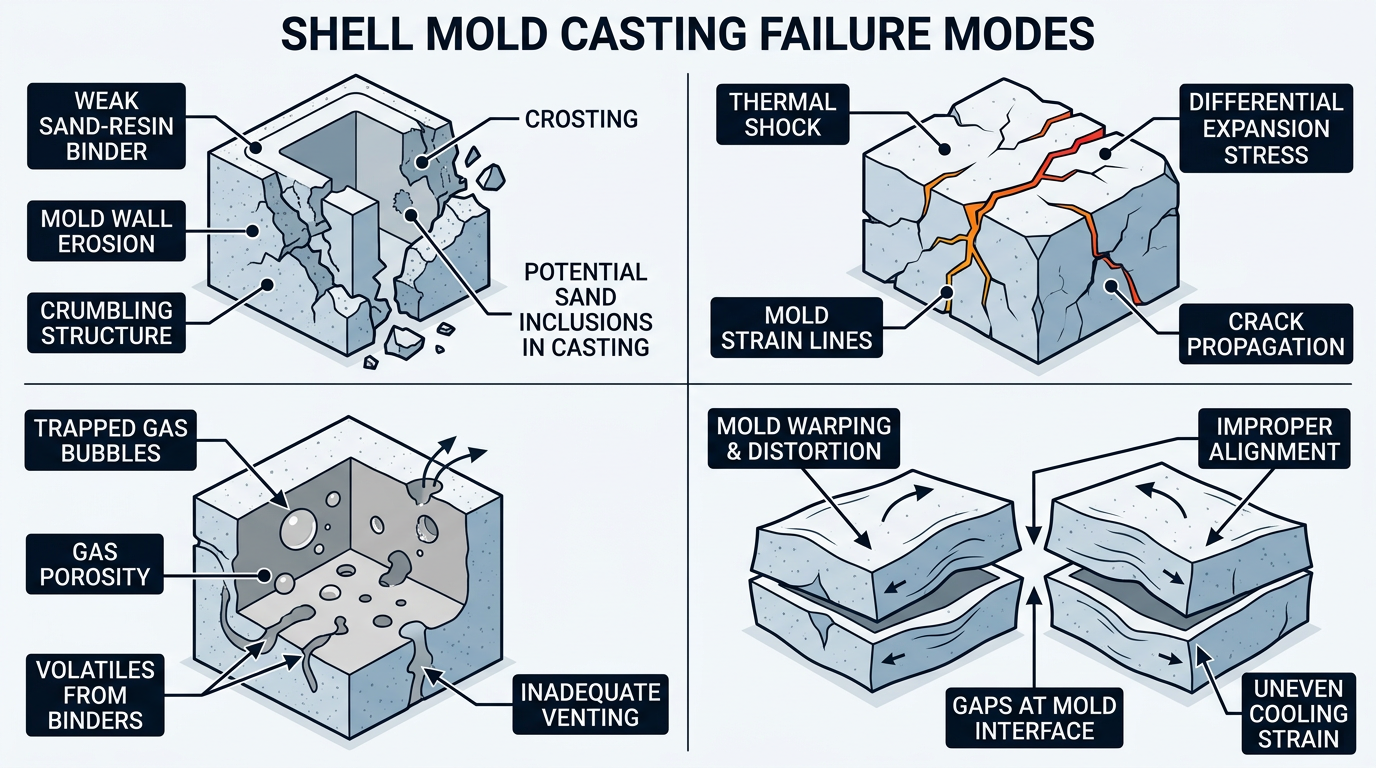

Shell Mold Defects and How to Prevent Them
Four failure modes account for most shell mold casting rejects, and three of them trace back to process control rather than material issues.
- Incomplete resin curing produces a shell that looks solid but crumbles under pour pressure. The root cause is either low pattern temperature or short dwell time. If you are seeing random shell fractures during pour, work backwards from the riser — check your cure parameters before blaming the sand mix.
- Shell cracking from thermal shock happens when hot metal hits a cold or unevenly cured shell. The fix is consistent oven cure and preheating the assembled mold before pour.
- Gas porosity from resin decomposition. Every gram of phenolic resin in the shell generates gas when metal hits it. Higher resin content means stronger shells but more gas. Adequate venting in the mold design is the countermeasure — and it is often undersized because the engineer copies vent placement from green sand layouts that do not account for shell mold gas volumes.
- Mold distortion from uneven cooling shows up as dimensional drift on one side of the casting. The cause is usually asymmetric shell thickness — one half cured longer than the other, or the pattern had a temperature gradient.
Good gating design prevents most of these problems. In shell mold casting, gating is not just about filling the cavity — it is about controlling flow velocity to avoid fracturing the mold, placing risers to manage directional solidification, and balancing fill time against thermal shock. A gating scheme that works in other sand casting mold types with forgiving flask support will not survive in a thin, brittle shell.
Making the Right Process Call

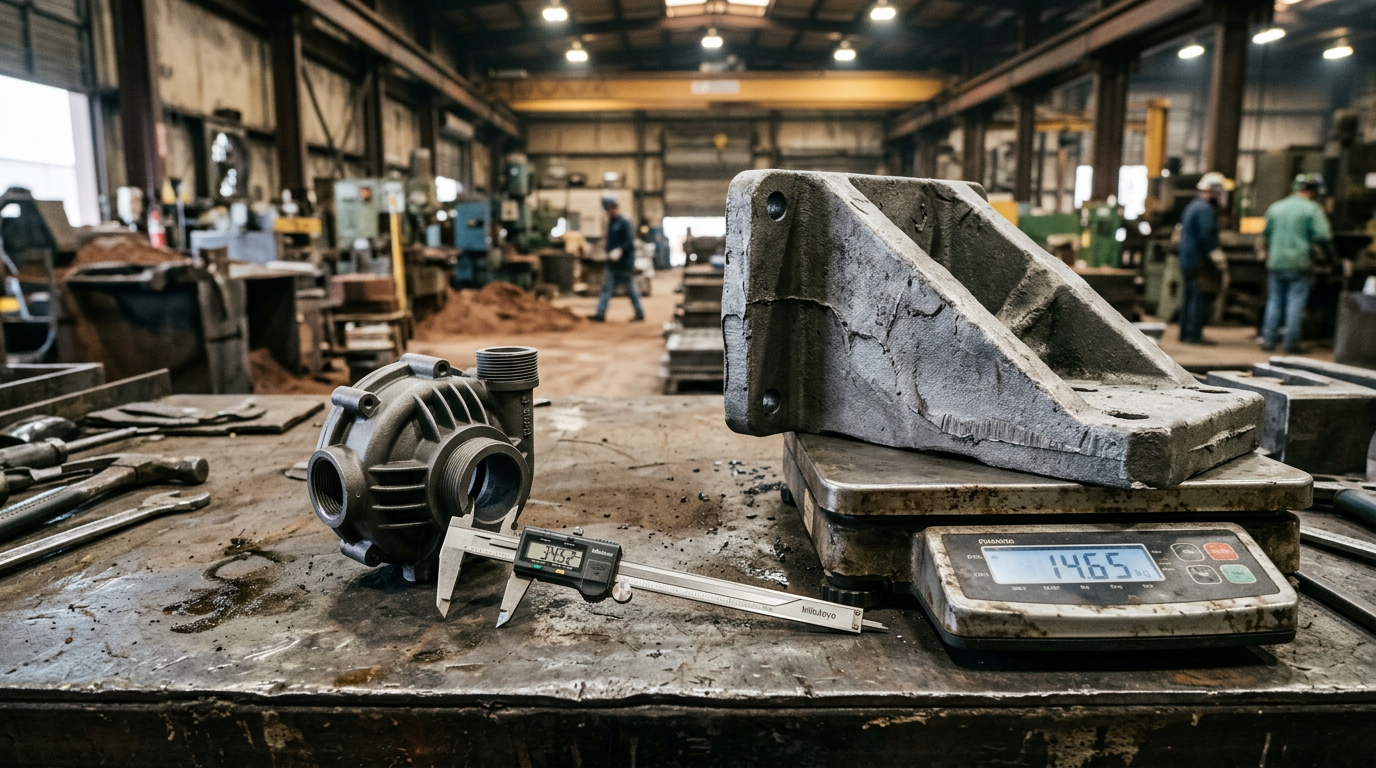

Shell mold casting earns its cost premium on parts between 0.5 and 50 kg that need CT6-CT8 tolerances, thin walls, or fine surface detail — and that run in volumes of a few hundred to several thousand per year. Outside that window, green sand or no-bake usually delivers acceptable quality at lower cost. Before locking in a process on your next RFQ, ask the foundry three things: what shell thickness they run for your part geometry, what their actual weight limit is, and whether your tolerances truly require shell-level precision.
